3.2 Typical characteristics
4513/4514 Group User’s Manual
-200
-160
-120
-80
-40
0
40
80
120
160
200
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5
-50
-40
-30
-20
-10
0
10
20
30
40
50
0 0.5 1 1.5 2 2.5 3

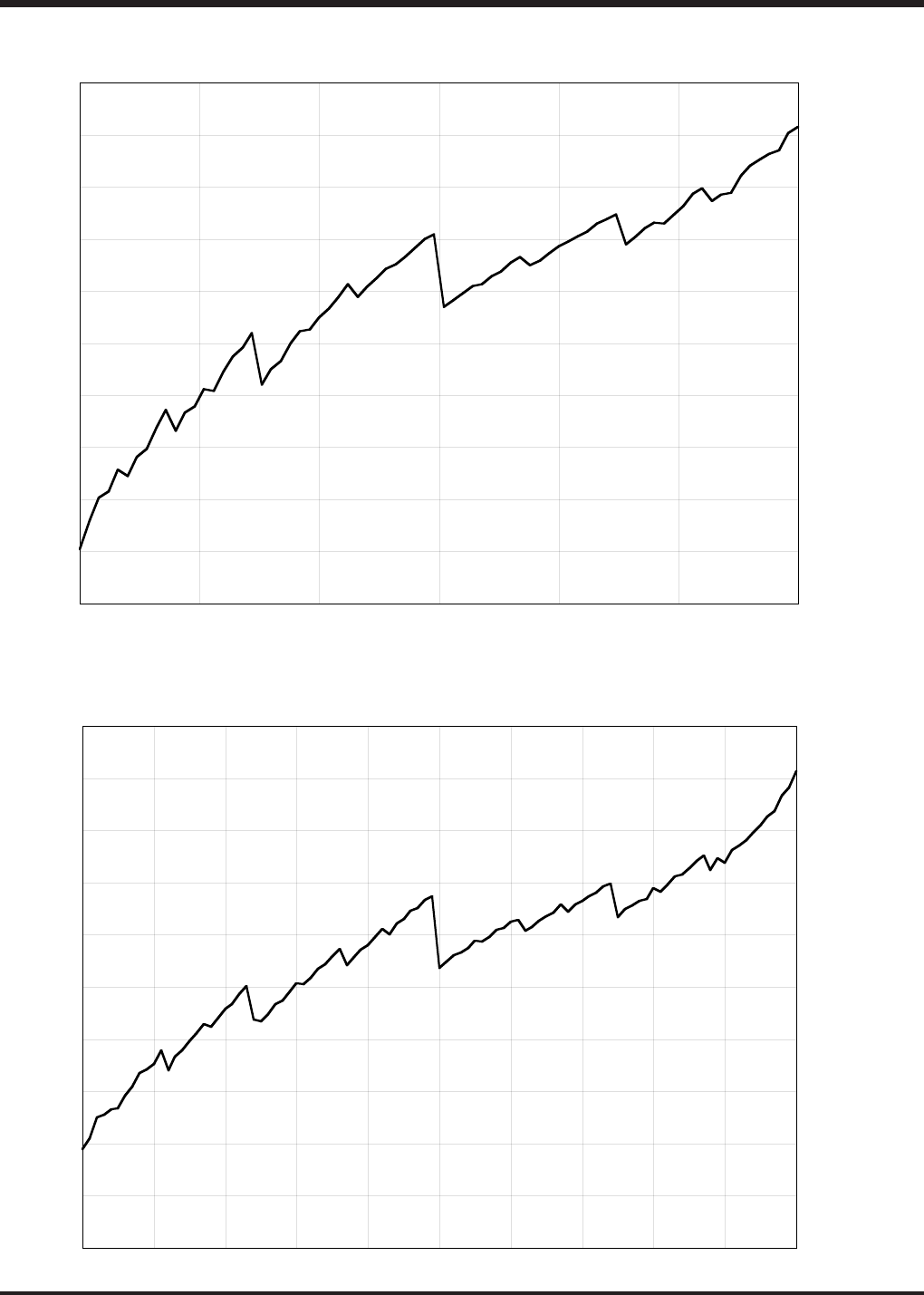

(3) VDD = 3.0 V, f(XIN) = 2 MHz, high-speed mode
Ta = 25 °C
Analog input voltage VAIN (V)
Analog input current I
AIN (nA)
(4) VDD = 5.0 V, f(XIN) = 4 MHz, high-speed mode
Ta = 25 °C
Analog input voltage VAIN (V)
Analog input current I
AIN (nA)
