Clock signal f(XIN) is obtained by externally connecting a ceramic
resonator.
Connect this external circuit to pins XIN and XOUT at the shortest
distance. A feedback resistor is built in between pins XIN and XOUT.
When an external clock signal is input, connect the clock source to
XIN and leave XOUT open. When using an external clock, the maxi-
mum value of external clock oscillating frequency is shown in Table
24.
Table 24 Maximum value of external clock oscillation frequency
Supply voltage
VDD = 2.0 V to 5.5 V
VDD = 4.0 V to 5.5 V
VDD = 2.5 V to 5.5 V
VDD = 2.0 V to 5.5 V
VDD = 2.5 V to 5.5 V
VDD = 4.0 V to 5.5 V
VDD = 2.5 V to 5.5 V
Oscillation frequency (duty ratio)
3.0 MHz (40 % to 60 %)
3.0 MHz (40 % to 60 %)
1.0 MHz (40 % to 60 %)
0.8 MHz (40 % to 60 %)
3.0 MHz (40 % to 60 %)
3.0 MHz (40 % to 60 %)
1.0 MHz (40 % to 60 %)
ROM ORDERING METHOD
Please submit the information described below when ordering
Mask ROM.
(1) Mask ROM Order Confirmation Form ..................................... 1
(2) Data to be written into mask ROM ...............................EPROM
(three sets containing the identical data)
(3) Mark Specification Form .......................................................... 1

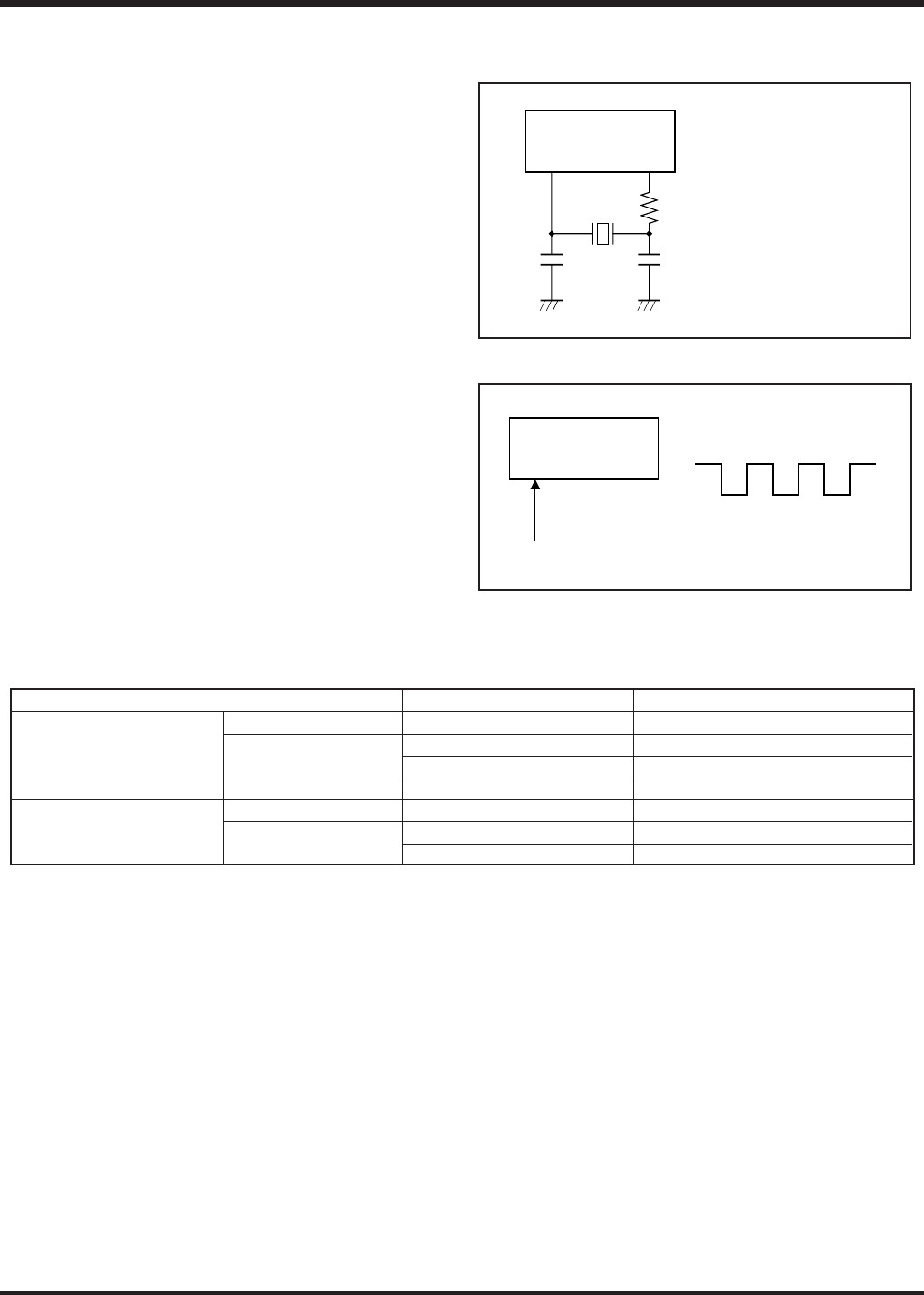

Fig. 42 Ceramic resonator external circuit
Fig. 43 External clock input circuit
Note: Externally connect a
damping resistor Rd de-
pending on the oscillation
frequency.
(A feedback resistor is
built-in.)
Use the resonator manu-
facturer’s recommended
value because constants
such as capacitance de-
pend on the resonator.
Mask ROM version
One Time PROM version
4513/4514
XIN XOUT
Rd
CIN COUT
4513/4514
XIN XOUT
External oscillation circuit
VDD
VSS
Middle-speed mode
High-speed mode
Middle-speed mode
High-speed mode
FUNCTION BLOCK OPERATIONS/ROM ORDERING METHOD
