e-STUDIO281c/351c/451c ADJUSTMENT June 2005 © TOSHIBA TEC
3 - 66

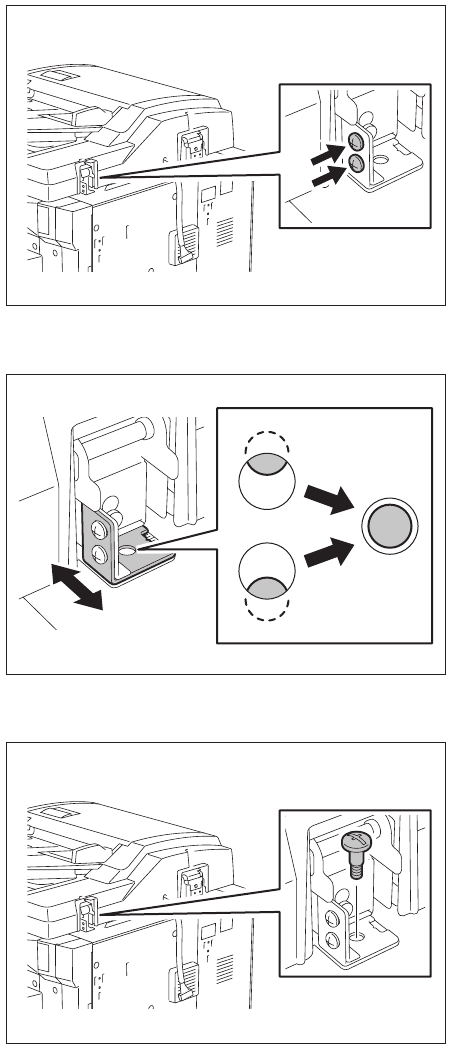

(6) Loosen the hole position adjustment screws
on the right hand side.
Fig.3-44
(7) Match the screw hole positions.
Fig.3-45
(8) Install the right-hand hinge screw at the rear
side.
Fig.3-46
