Appendix C: Upgrading the StorPoint CD
146 AXIS StorPoint CD E100 User’s Manual
128 Mbyte Module • 144-pin 8-byte SO DIMM
• 16Mx8 EDO DRAM based (8 pcs.)
• 3.3V
• 50 ns
• 4K refresh cycles
• A0-A11 address inputs
Use one of this module or equivalent:
Installation Procedure Follow these steps to add the memory module:
1. Unplug the power supply from the StorPoint CD.
2. Remove the server casing.
3. Mount the memory module by sliding it into the X4 socket at an angle of 45
degrees. Once the module is fully inserted, press it downwards towards the
PCB, until the socket locks the module into place.
Caution! ❏ Always use an antistatic bracelet when handling the memory modules.
4. Replace the server casing.
5. Power up the StorPoint CD. The new memory module is automatically
identified and the usage optimized by the StorPoint CD.
Manufacturer Type
Centon P/N CAX16MX64-5EVDG
QAX100N 64bit EDO
QAX100 64bit EDO

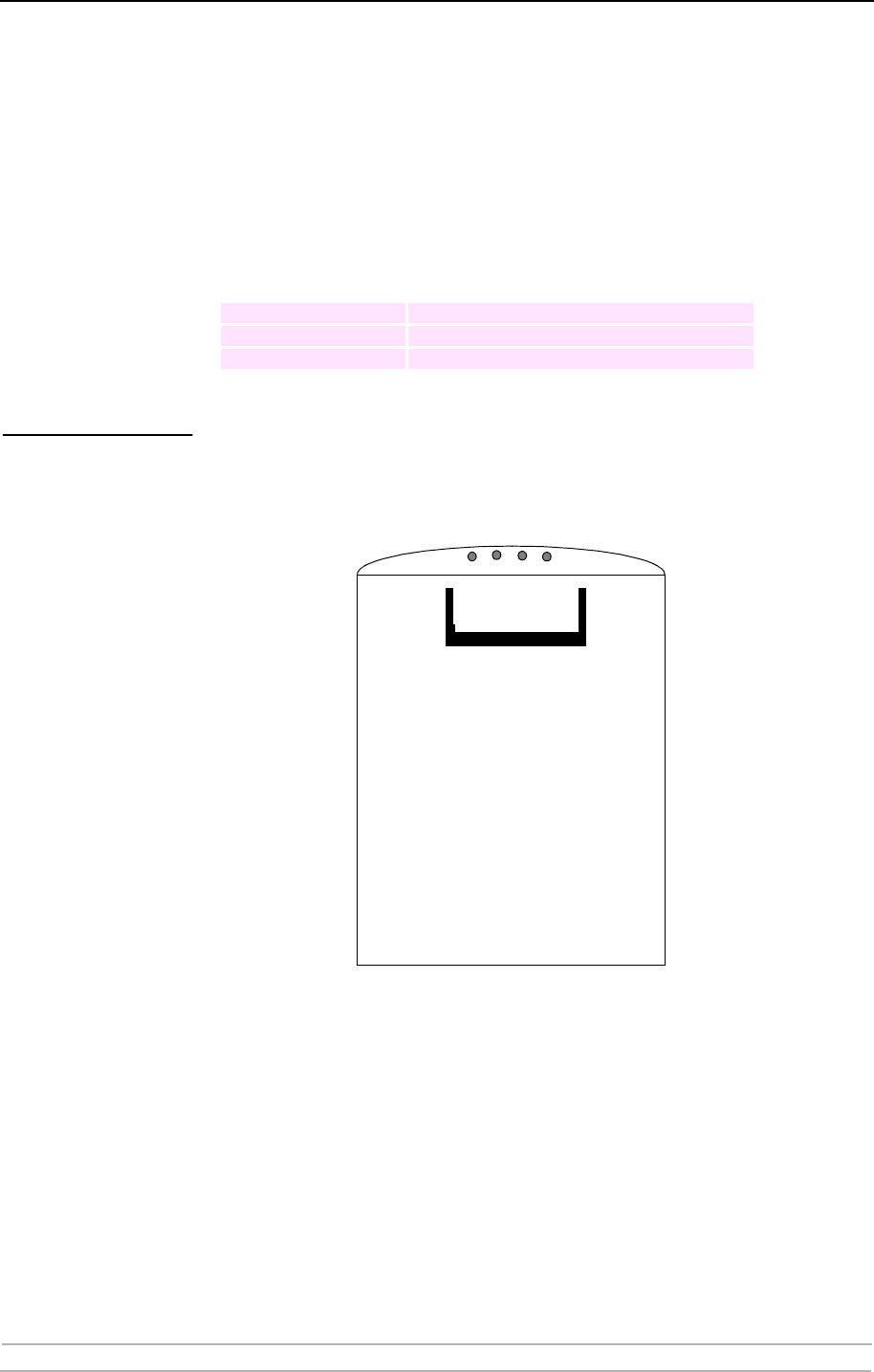

Position X4
Front
