C141-E090-01EN 5 - 97
5.6.3.10 Host terminating an Ultra DMA data out burst
5.6.3.2 contains the values for the timings for each of the Ultra DMA Modes.
Note:
The definitions for the STOP, DDMARDY- and HSTROBE signal lines are no longer in
effect after DMARQ and DMACK are negated.

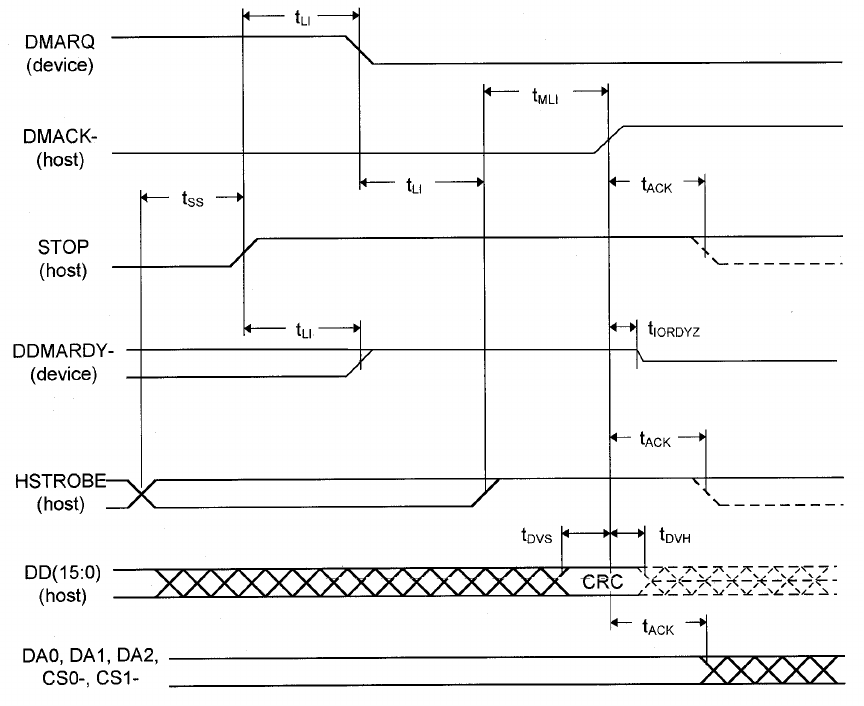

Figure 5.18 Host terminating an Ultra DMA data out burst
