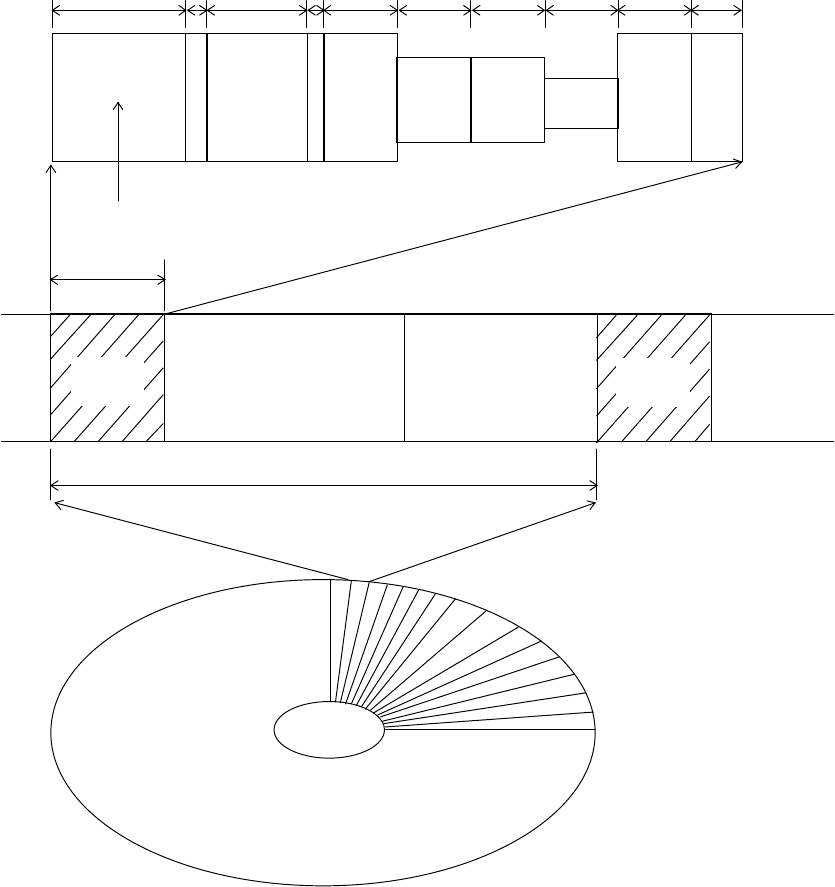

Figure 4.6 72 servo frames in each track
(1) Write/read recovery
This area is used to absorb the write/read transient and to stabilize the AGC.
(2) Servo mark (SMK1, SMK2)
This area generates a timing for demodulating the gray code and position-demodulating Pos A
to D by detecting the servo mark.
