C141-E090-01EN 3 - 15

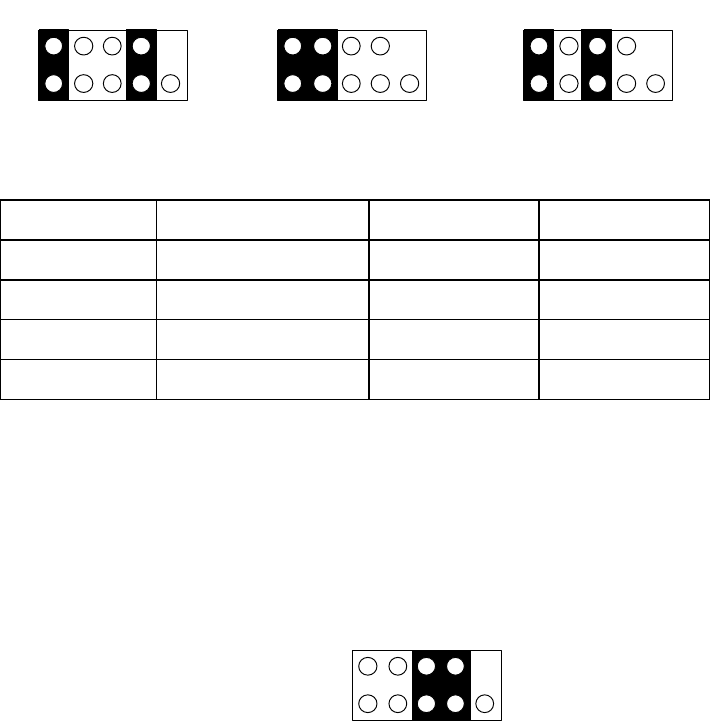

(3) Special jumper settings
(a) 2.1 GB clip (Limit capacity to 2.1 GB)
If the drive cannot be recognized by system with legacy BIOS’s which do not allow single
volume sizes greater than approximately 2.1 GB, the following jumper settings should be
applied.
Slave DeviceMaster Device Cable Select
8642
97531
8642
97531
8642
97531
Model No. of cylinders No. of heads No. of sectors
MPE3102AH 4,092 16 63
MPE3136AH 4,092 16 63
MPE3204AH 4,092 16 63
MPE3273AH 4,092 16 63
(b) Slave present
If the slave device does not use the Device Active/Slave Present (DASP–) signal to
indicate its presence, the device is configured as a Master with slave present when the
following jumper settings is applied.
Slave present
8642
97531
