Main Motor Removal
Removal/Replacement Procedures 7-87
8 Remove the right side cover. (See page 7-9.)
9 Remove the counter. (See page 7-20.)
10 Remove the main drive cover (one screw).
11 Remove the fuser drive cover (three screws).
12 Remove the gear stay cover.
13 Remove the gear stay (three screws).
14 Remove the disk drive housing. (See page 7-25.)
15 Remove the printhead. (See page 7-23.)
16 Remove the DC power supply. (See page 7-31.)
17 Remove the main motor gear and bearing (two C-clips).
18 Disconnect CN95.
19 From the right side, remove the two screws holding the main motor in place.
20 From the back, remove the three screws holding the main motor in place.
21 Remove the main motor through the side of the printer.
Replacement Notes:
• Remove the drive shaft key from the old motor. Replacement motors are not sup-
plied with a key.
• Be sure to tuck the CN95 connector under the motor after installation so that the
wires do not protrude into the disk drive assembly area.
CN95

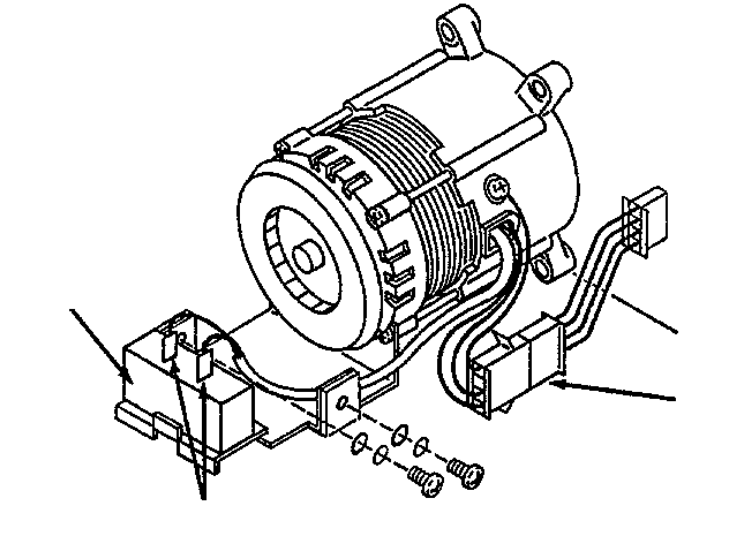

Main Motor Detail
Capacitor
Capacitor Contacts
