Function (Parameter) list
2
FUNCTIONS

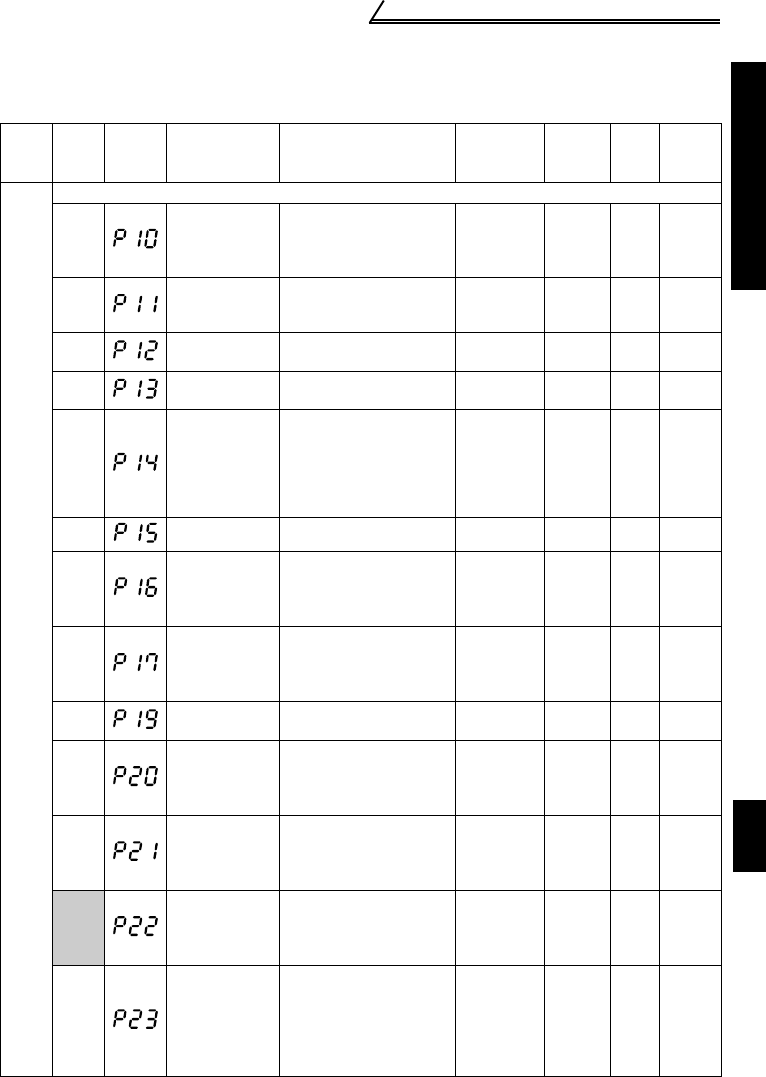

Parameter List
The extended function parameters are made valid by setting "1" in Pr. 30 "extended
function display selection". (For more detailed information on the way to set Pr. 30,
refer to the instruction manual (basic).)
Func-
tion
Para-
meter
Indica-
tion
Name Setting Range
Minimum
Setting
Increments
Factory
Setting
Refer
To:
Cus-
tomer
Setting
Standard operation functions
Parameters 0 to 9 are basic function parameters.
10
DC injection
brake
operation
frequency
0 to 120Hz 0.1Hz 3Hz 71
11
DC injection
brake
operation time
0 to 10s 0.1s 0.5s 71
12
DC injection
brake voltage
0 to 15% 0.1% 6% 71
13
Starting
frequency
0 to 60Hz 0.1Hz 0.5Hz 72
14
Load pattern
selection
0:For constant-torque
loads,
1:For variable-torque
loads,
2:For vertical lift loads,
3:For vertical lift loads
1073
15 Jog frequency 0 to 120Hz 0.1Hz 5Hz 74
16
Jog
acceleration/
deceleration
time
0 to 999s 0.1s 0.5s 74
17
RUN key
rotation
direction
selection
0: Forward rotation,
1: Reverse rotation
1074
19
Base frequency
voltage
0 to 800V, 888, - - - 1V - - - 65
20
Acceleration/
deceleration
reference
frequency
1 to 120Hz 0.1Hz 60Hz 67
21
Stall
prevention
function
selection
0 to 31, 100 1 0 75
22
Stall
prevention
operation
level
0 to 200% 1% 150% 77
23
Stall
prevention
operation level
compensation
factor at
double speed
0 to 200%, - - - 1% - - - 77
