1 Hardware Overview 1.11 TFT Color Display
1.11 TFT Color Display
The TFT color display consists of 14.1-inch (XGA) or 15.0-inch (XGA, SXGA+) LCD
module and FL inverter board.
1.11.1 LCD Module
The LCD module used for the TFT color display uses a backlight as the light source and can
display a maximum of 262,144 colors with 1,024 x 768 or 1,400 x 1,050 resolution. North
Bridge can control both internal and external XGA- or SXGA+- support displays
simultaneously.

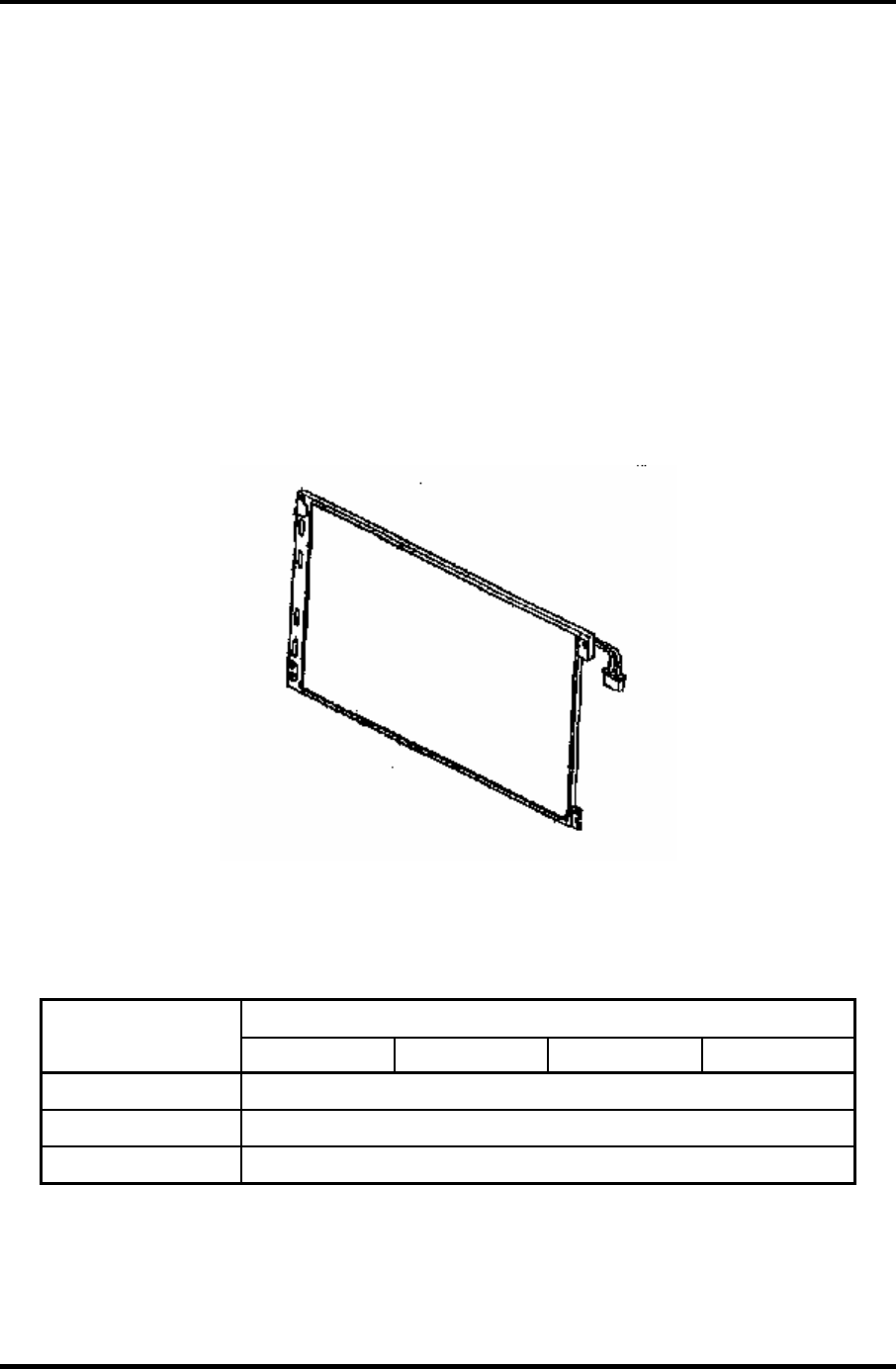

Figure 1-12 shows a view of the LCD module and Table 1-9 lists the specifications.
Figure 1-12 LCD module
Table 1-9 LCD module specifications (14.1-inch XGA TFT) (1/3)
Specifications
Item
G33C00014110 VF2093P01 VF2058P01 G33C00015110
Number of Dots 1,024(W) x 768(H)
Dot spacing (mm) 0.279(H) x 0.279(V)
Display range (mm) 285.696(H) x 214.272(V)
1-30 Satellite A40 Maintenance Manual (960-458)
