Chapter 2 - Installation
BreezeACCESS VL System Manual
44
For vertical polarization install the unit with the Polarization Arrow pointing
upward (as in the figure above).
For horizontal polarization install the unit with the Polarization Arrow
pointing sideward and the connectors facing downward.
2.3.2.2 Pole Mounting the ODU Using the Clamp
Figure 2-4 and Figure 2-5 illustrate how to mount an ODU on a pole, using the
clamp and threaded rods.
NOTE
There is a groove on one end of the threaded rod. Be sure to insert the threaded rods with the
grooves pointing outward, and fasten them to the unit using a screwdriver. Install the unit with the
bottom panel, which includes the connectors, facing downward.

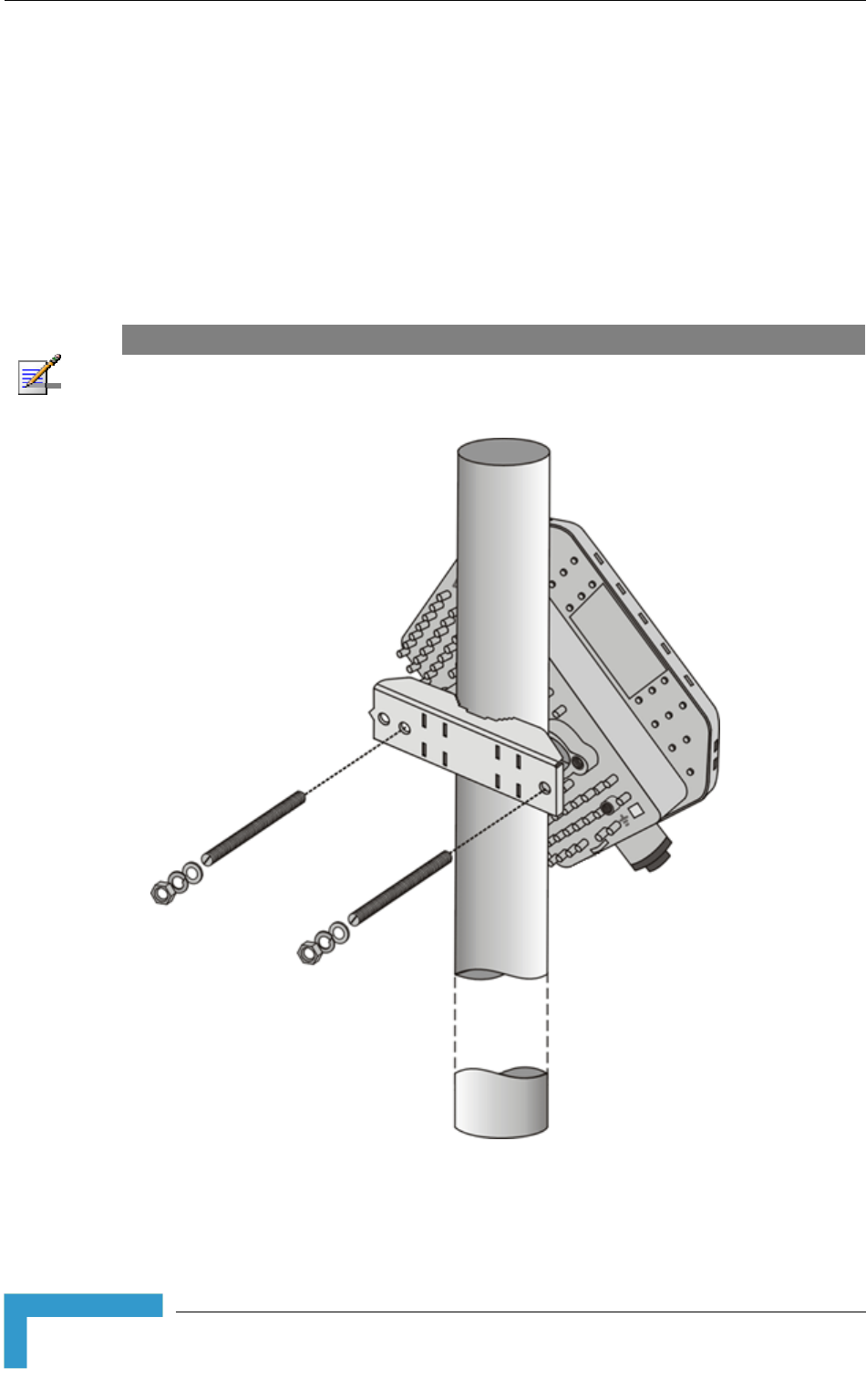

Figure 2-4: New SU-A-ODU Pole Installation Using the Special Clamp, Vertical Polarization
