Chapter 5
Drive Enclosure System
5.1 The SGI InfiniteStorage 15000 Drive Enclosure
The SGI InfiniteStorage 15000 drive enclosure storage system is an ultra dense 4U 60 disk drive
enclosure. Figure 5–1 and Figure 5–2 show front and rear views of a drive enclosure, respectively.
Module and major components and their locations are shown in Figure 5–3.

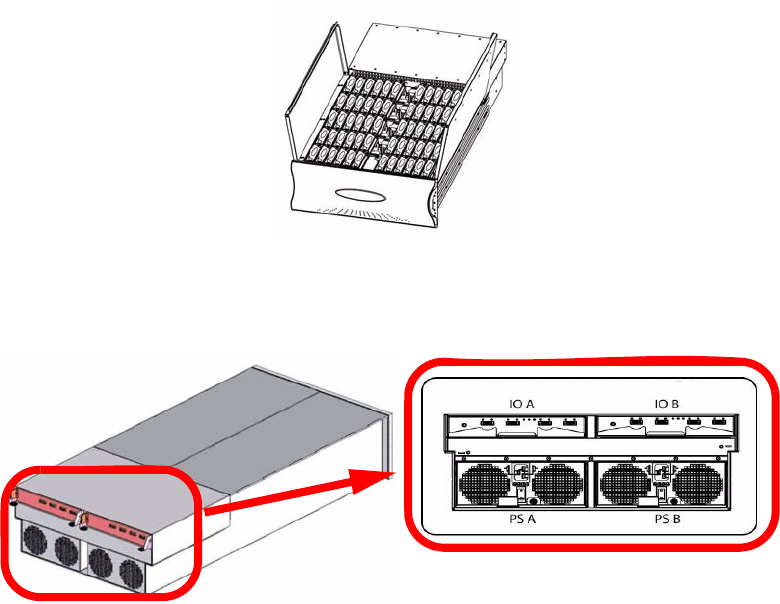

Figure 5–1 The Drive Enclosure System - front open view
Figure 5–2 The Drive Enclosure System - rear isometric and rear views
