12. Alignment menu
5. Use the ▲ or ▼ key to select a corner and press ENTER.
6. Use ▲ or ▼ key to move the selected point in the X position and use ◄ or ► key to move the selected point in the Y position.

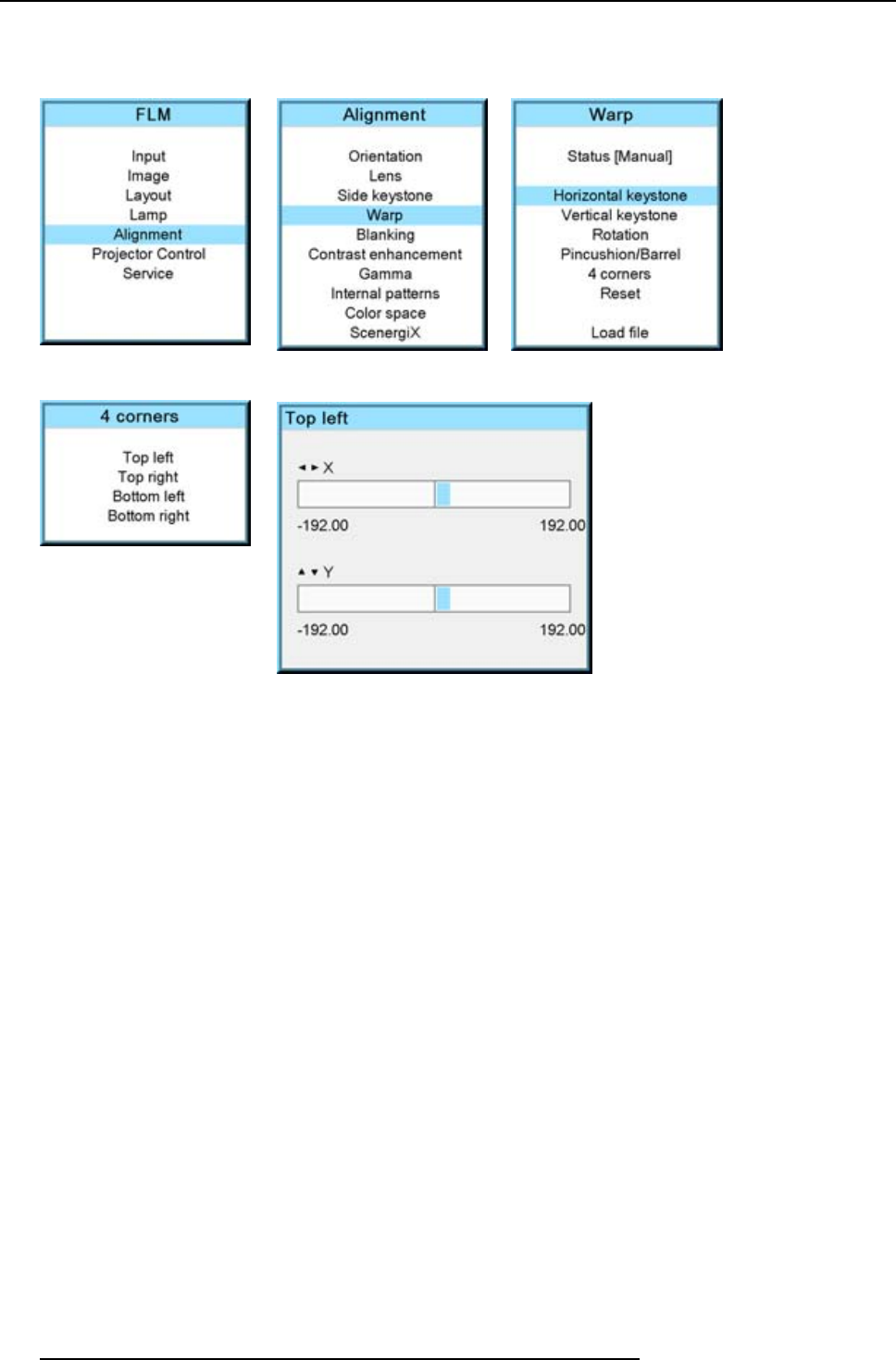

Image 12-42
Image 12-43 Image 12-44
Image 12-45
Image 12-46
12.5.8 Reset warp settings
What can be done ?
The current warp settings can be reset or returned to zero (0). At that moment all functions within the warping menu are available
again.
How to correct the distortion
1. Press MENU to activate the menus.
2. Use the ▲ or ▼ key to select Alignment and press ENTER.
3. Use the ▲ or ▼ key to select Warp and press ENTER.
The warp dialog box appears.
4. Use the ▲ or ▼ key to select Reset and press ENTER.
All warp settings are reset. The Status is set to [Off].
128
R59770017 FLM HD14 15/03/2010
