14. Service menu
Use the ▲ or ▼ item in the menu to select the previous or next page with information.

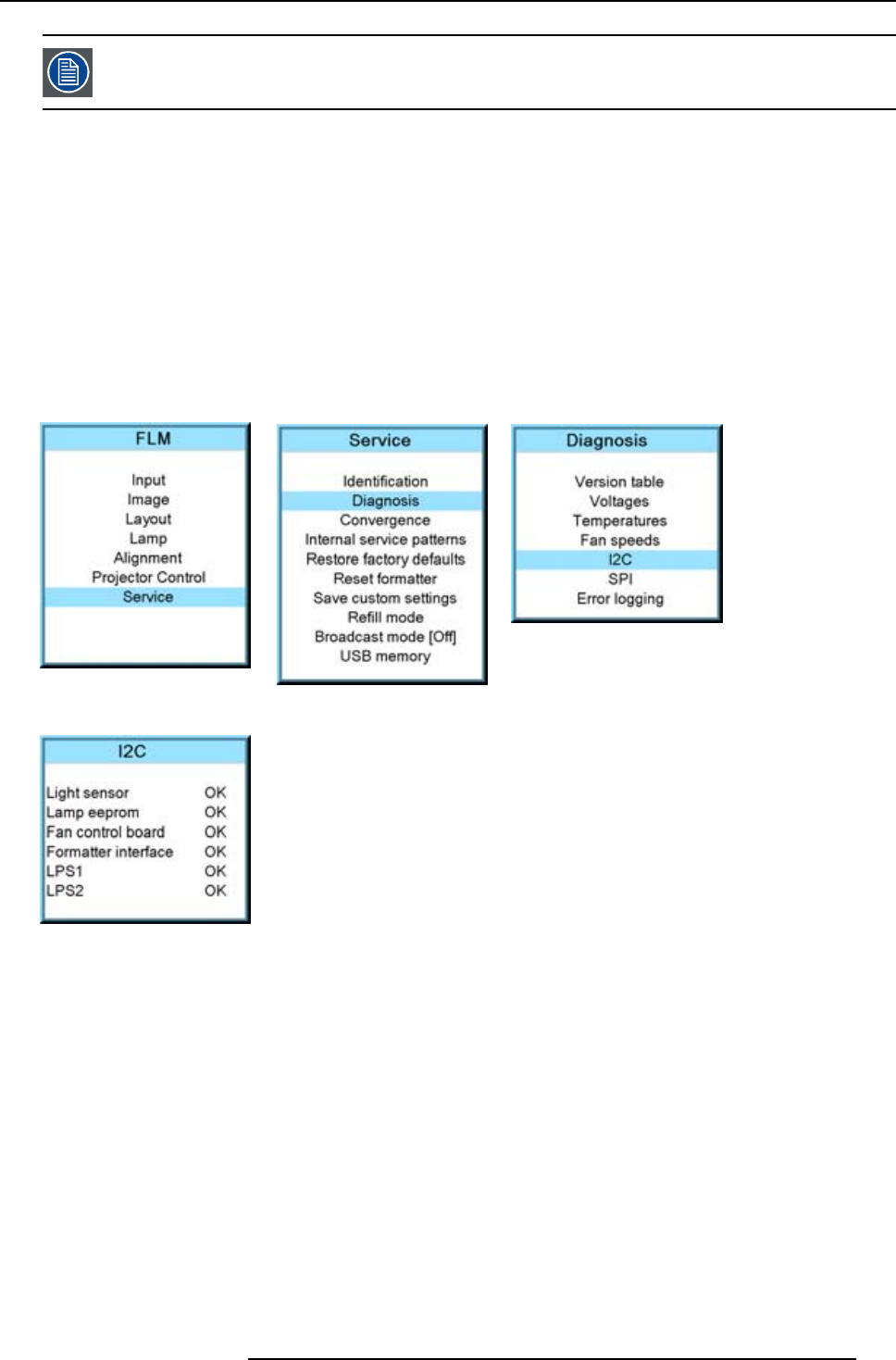

14.3.4 I²C diagnosis
How to select?
1. Press MENU to activate the menus.
2. Use the ▲ or ▼ key to select Service and press ENTER.
The service window opens.
3. Use the ▲ or ▼ key to select Diagnosis and press ENTER.
The diagnosis screen is displayed.
4. Use the ▲ or ▼ key to select I2C and press ENTER.
The I²C diagnosis overview is displayed.
Image 14-16
Image 14-17
Image 14-18
Image 14-19
14.3.5 Temperatures
How to get an overview?
1. Press MENU to activate the menus.
2. Use the ▲ or ▼ key to select Service and press ENTER.
The service window opens.
3. Use the ▲ or ▼ key to select Diagnosis and press ENTER.
The diagnosis screen will be displayed.
4. Use the ▲ or ▼ key to select Temperatures and press ENTER.
R59770017 FLM HD14 15/03/2010
169
