13. Projector control
Image 13-8
13.3 Serial communication
Overview
• Baud rate setup
• Interface standard
• RS422 termination

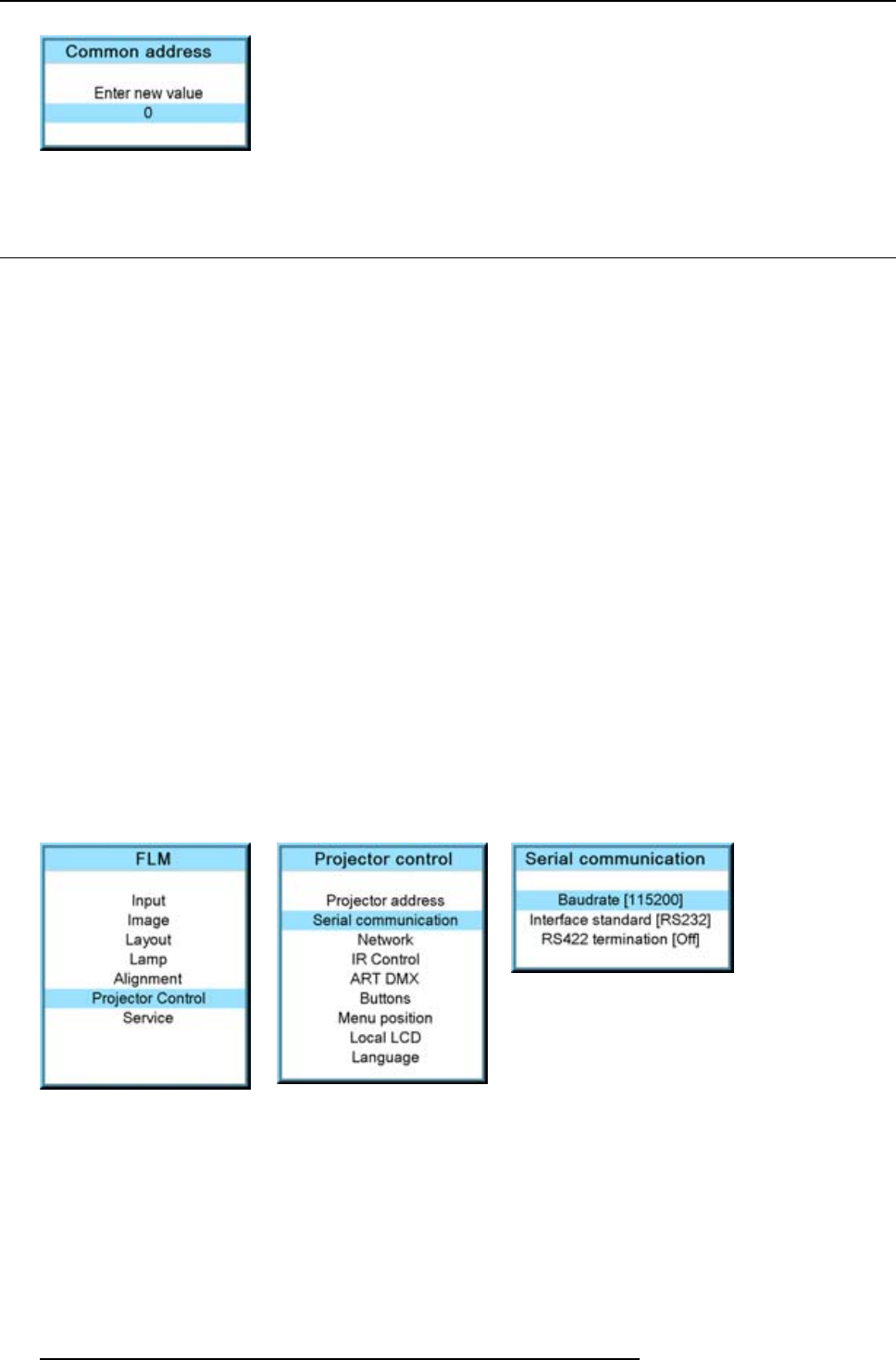

13.3.1 Baud rate setup
What can be done?
The baudrate for a serial connection with a computer can be set up.
How to set up?
1. Press MENU to activate the menus.
2. Use the ▲ or ▼ key to select Projector control and press ENTER.
3. Use the ▲ or ▼ key to select Serial communication and press ENTER.
The serial communication menu opens.
4. Use the ▲ or ▼ key to select Baudrate and press ENTER to toggle between the available baud rates.
The following baud rates can be selected:
- 9600
- 19200
- 38400
- 57600
- 115200
5. Press EXIT to return.
Image 13-9
Image 13-10
Image 13-11
13.3.2 Interface standard
What can be done?
The communication protocol for the communication between the projector and a computer can be set to RS232 or RS422.
How to set up
1. Press MENU to activate the menus.
2. Use the ▲ or ▼ key to select Projector control and press ENTER.
