16. SERVICING
About this chapter
This chapter contains general servicing procedures like lamp replacement, input unit replacement etc. Note that some of these
procedures may only be performed by qualified technical service personnel.
Overview
• Removal of the lamp house
• Removal of the input & communication unit
• Removal of an input module
• Installation of the lamp house
• Installation of the input & communication unit
• Installation of an input module
• Realignment of the lamp in its reflector
Extra service information
Extra service information for qualified service technicians can be found on Barco’s Partnerzone (URL:www.partner-
zone.events.barco.com). Registration is necessary.
If you are not yet registered, click on Partnerzone registration and follow the in
structions. With the created login and password, it is
possible to enter the partnerzone where you can find extra service information about the projector.
16.1 Removal of the lamp house
WARNING: This procedure may only be performed by qualified technical service
personnel.
CAUTION: Never attempt to disassemble the lamp from its housing or to dispose of it. Return it to Barco.
Due to its high internal pressure, the lamp may explode in either hot or cold states if improperly handled.
Necessary tools
7mmflat screw driver.
How to remove the lamp house of the projector ?
1. Switch off the projector and unplug the power cord at the projector side.
2. Remove the lamp cover, see "Removal of the lamp cover", page 195.
3. Release the three spring lock screws of the lamp house as illustrated.

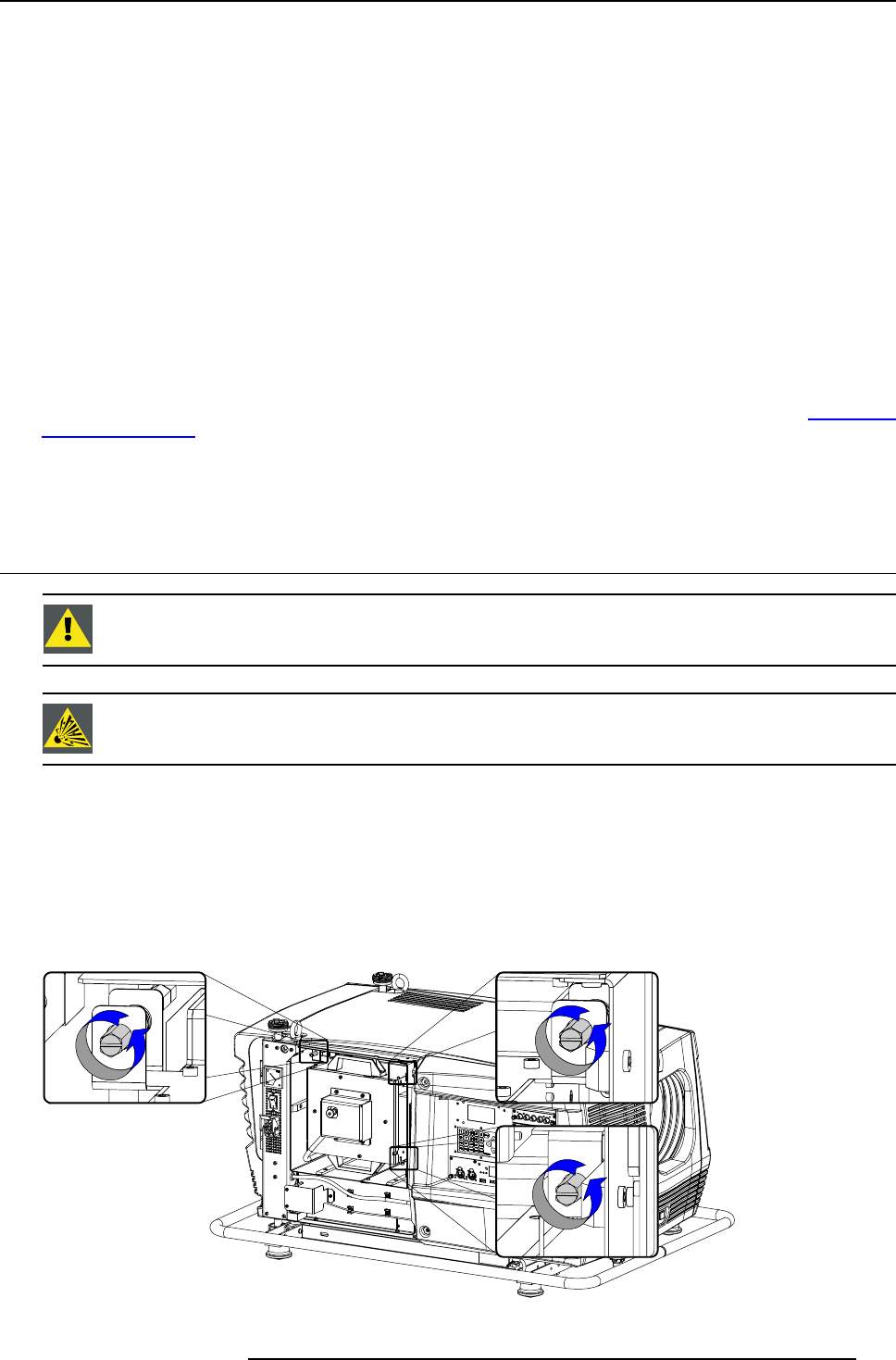

Image 16-1
R59770017 FLM HD14 15/03/2010 185
