17. Removal of the projector covers
Image 17-7

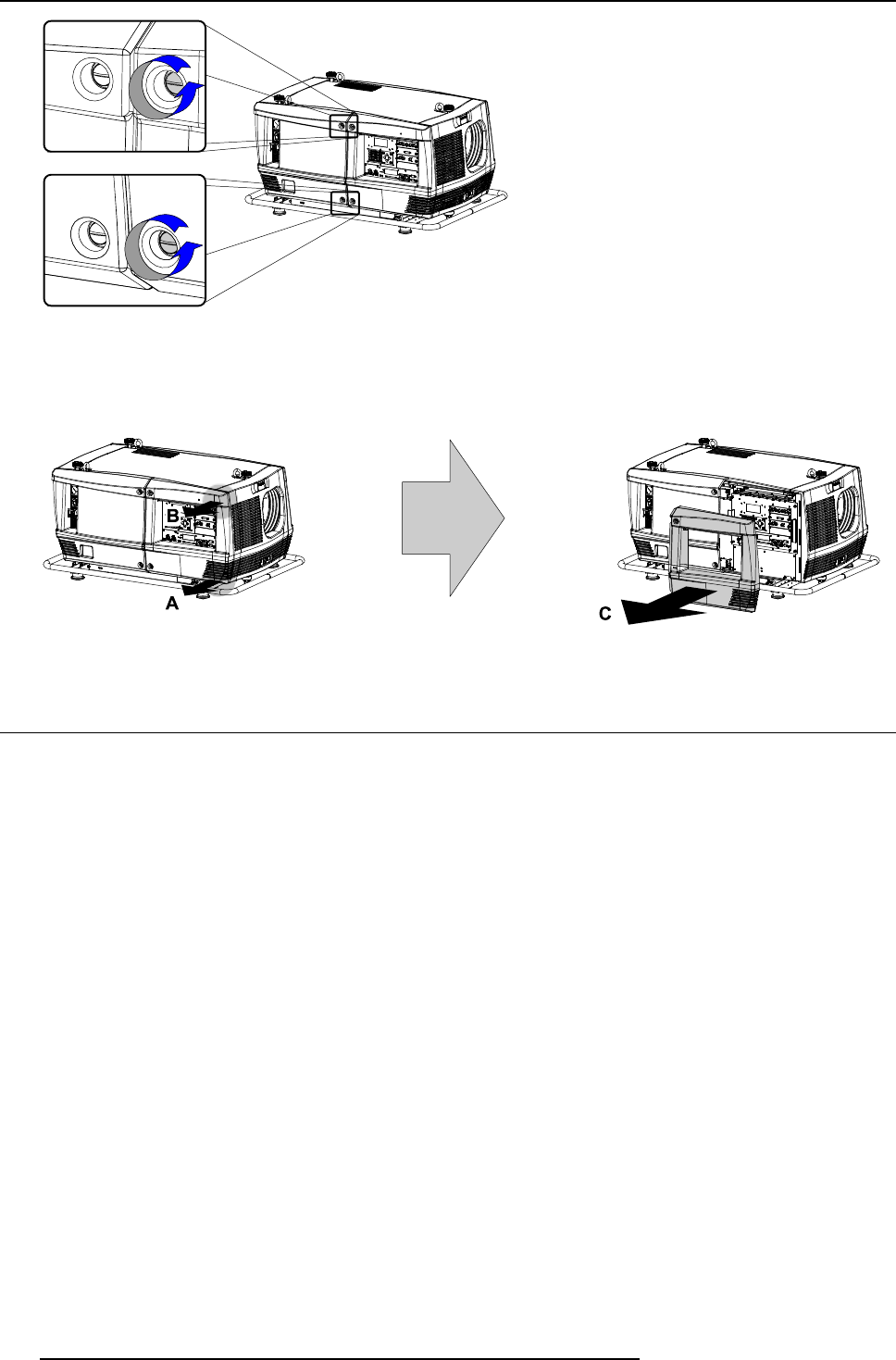

2. Remove the input cover from the projector doing the following:
a) gently pull out the right bottom corner (A) of the input cover,
b) then gently pull out the right top corner (B) of the input cover,
c) then move the input cover away from the projector (C).
Image 17-8
17.5 Installation of the front cover
Necessary tools
7mmflat screw driver.
How to install the front cover of the projector ?
1. Check if the front filter is present.
2. Ensure that no lens is mounted.
3. Install the front cover of the projector doing the following:
a) first hook in the side of the front cover at the front filter,
b) then gently push the other side of the front cover into position,
c) ensure that the locking studs in the corners click int
o their receivers.
196
R59770017 FLM HD14 15/03/2010
