12. Alignment menu
How to set for the rst projector

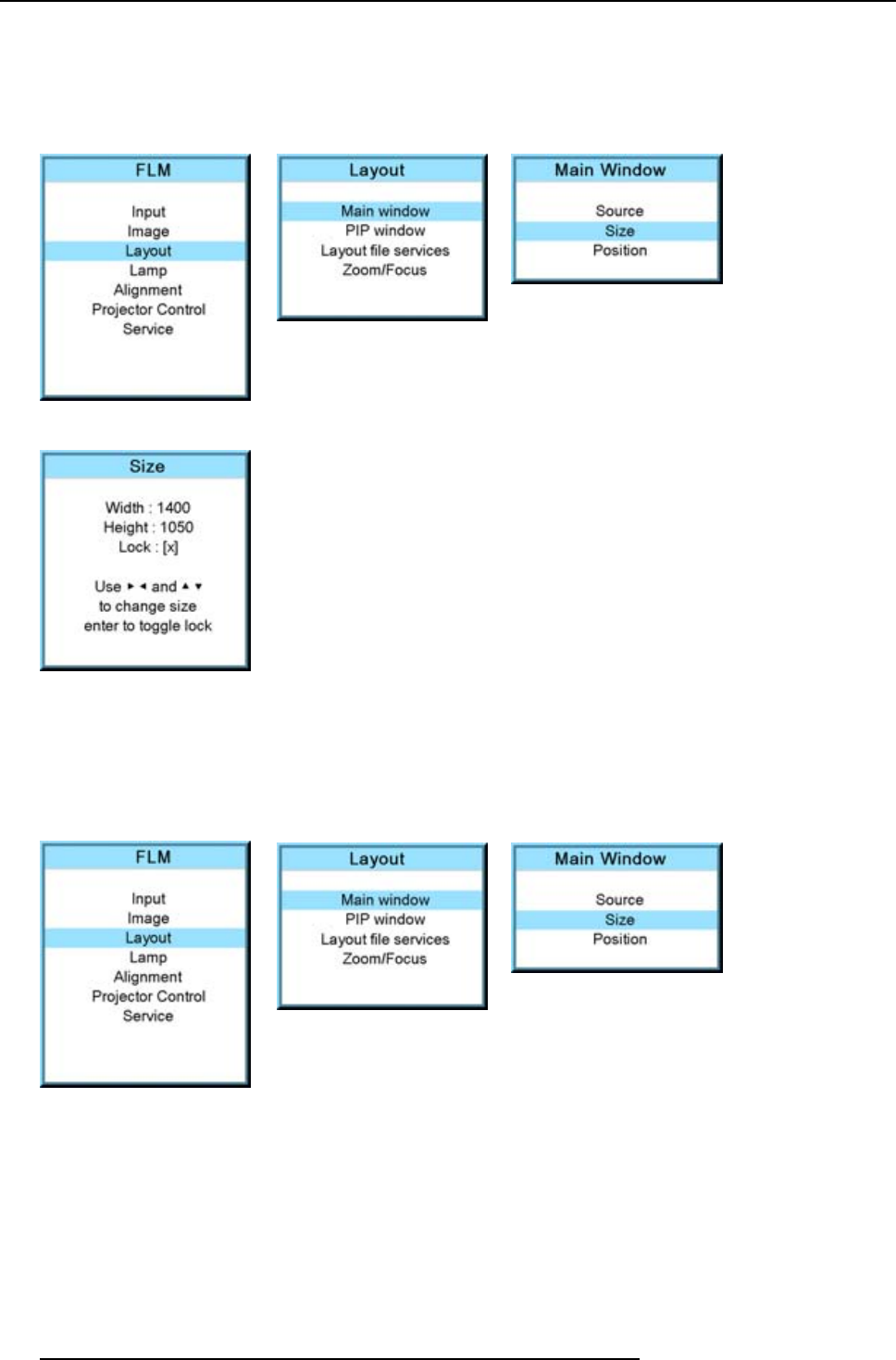

1. Go to Layout Main window Size
2. Enter the value for the Height as follow: Total Vertical screen resolution / 2 - 0.5 x overlap zone.
3. Position remains the same.
Image 12-89
Image 12-90
Image 12-91
Image 12-92
How to set for the second projector
1. Go to Layout Main window Size
2. Enter the value for the Width as follow: Total Vertical screen resolution / 2 - 0.5 x overlap zone.
3. Position = original start + Vertical height projector 1 - overlap zone
Image 12-93
Image 12-94
Image 12-95
