4-15System 7SC • Serial Communication

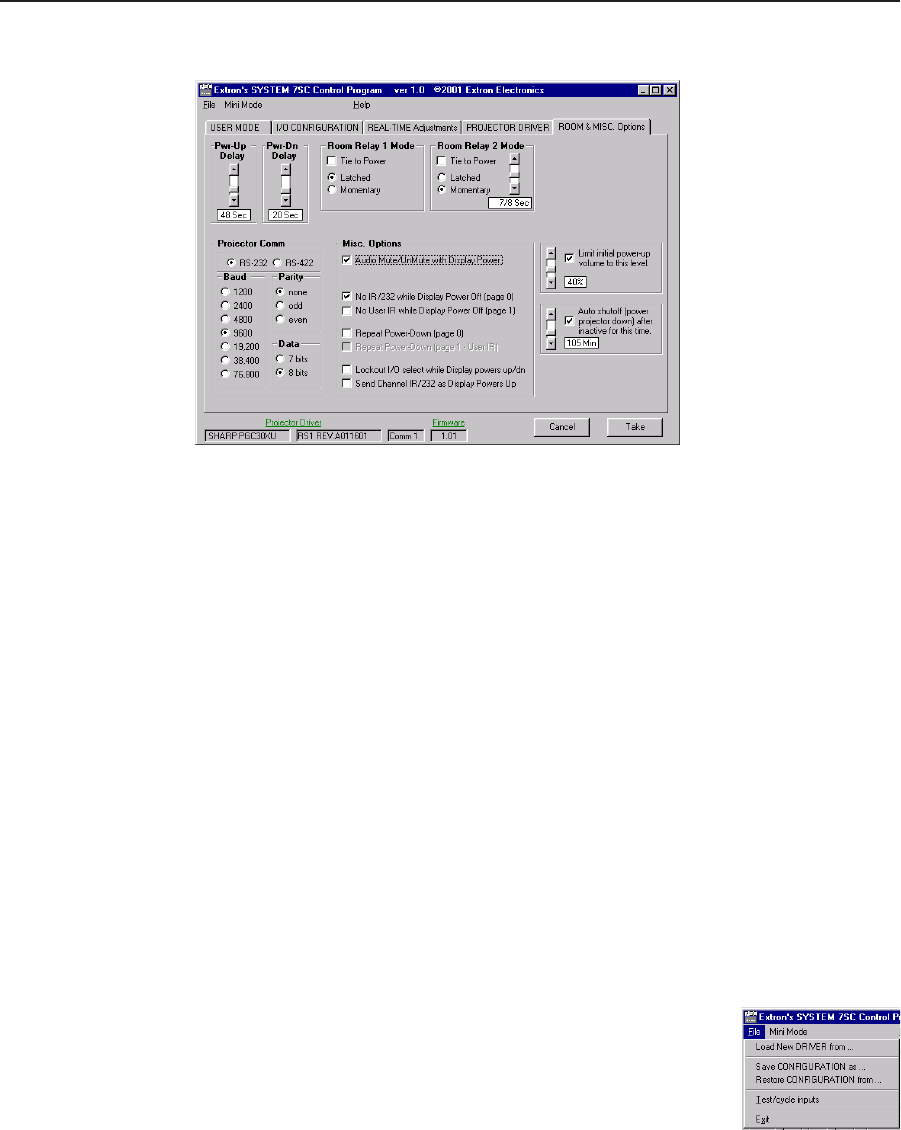

Room & Misc. Options
Use the Room & Misc.
Options screen to set
room relay modes and
delay periods, power
up/down delay
periods, change
projector
communications
settings, and perform
other functions.
Special features
Tie (room relay) to Power — Enabling this feature for room relay 1 or room relay 2
will cause that relay to turn on/off when the Display Power is turned on or off.
Projector Comm — Set communications protocol (RS-232 vs. RS-422, baud rate,
parity, data bits) in this section.
Misc. Options — This section provides a way to send (or not send) various
commands, to mute audio, and to lock input selection when the Display
Power is turned on or off. Descriptions of each item are available in the
System 7SC Help file.
Limit initial power-up volume — Here you can specify an attenuation level for the
initial volume of the audio output. If the Limit initial power-up volume box
is not checked (enabled) or if the limit is set to 100%, the volume will not be
limited (attenuated).
Auto shutoff — If Auto shutoff is enabled, the switcher monitors the time elapsed
since the last input selection (or other function) and sends a display power off
command (or that command and any other commands associated with the
Display Power button) after a set period of inactivity. That period can be
selected in fifteen-minute increments to be as long as 480 minutes (8 hours).
Saving and restoring configurations
The System 7SC can be configured by various means
(IR learning, downloading, front panel adjustment, or
combinations of those methods), and the configuration
settings can be saved to a file for later use.
1. In the System 7SC Control Program, select File, then
select Save Configuration as... .
2. Save the file as (filename).sy7. An unlimited number of configuration files can
be saved on the PC as long as each file has a unique file name ending in .sy7.
3. To retrieve the configuration from within the System 7SC Control Program,
select File, then select Restore Configuration from... . A set of all the switcher,
scaler, picture, and audio adjustment settings, and also drivers will be
downloaded into the System 7SC.
