4. Installation
Never use a short throw lens in an Off-Axis installation. Shifting the lens will not guarantee optimal image
quality.
CAUTION: The harddisk in the Icon is formatted in a horizontal position but can operate in all axes ( 6 direc-
tions). The projector should, however, not be tilted more than +/- 5 degrees from these positions, otherwise
error rates will increase.

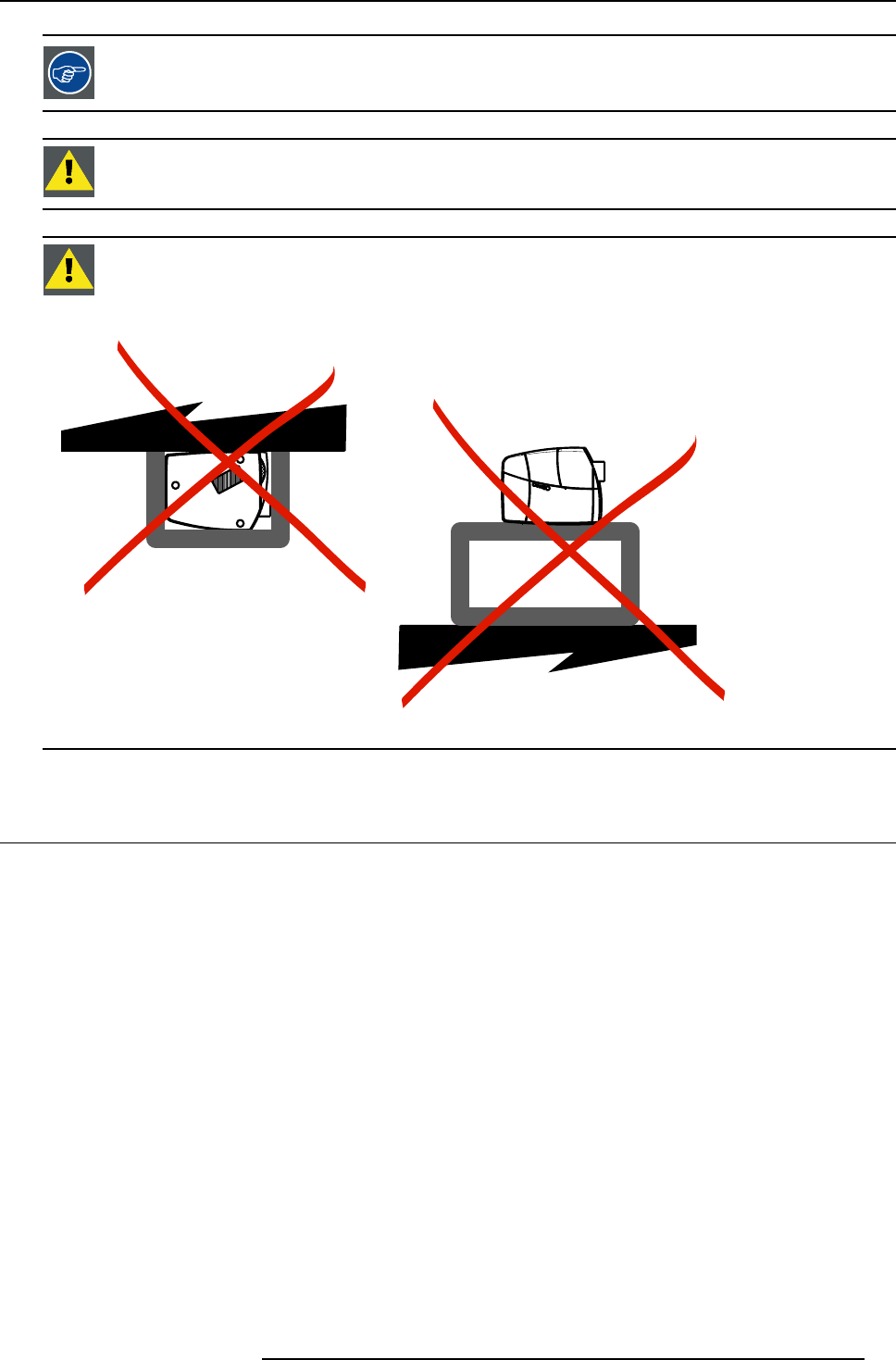

CAUTION: Never place the projector on either side !
Floor
Ceiling
Image 4-8
4.5 Connections
Overview
• Power connection
• Connections
• Signal connections
4.5.1 Power connection
Power connection
1. Use the supplied power cord to connect the projector to the power outlet.
2. Plug the female power connector into the male connector at the front of the projector, secure the connection with the locking
spring.
R5976821 BARCO ICON 15/03/2007
21
