4. Installation
In case of a “progressive scan” component video source, the notation used is PR/Y/PB
4.5.3.7 Connecting a DVI signal
DVI
Digital Visual Interface is a display interface developed in response to the proliferation of digital flat panel displays.
The digital video connectivity standard that was developed by DDWG (Digital Display Work Group). This connection
standard offers two different connectors: one with 24 pins that handles digital video signals only, and one with 29 pins
that handles both digital and analog video. This standard uses TMDS (Transition Minimized Differential Signal) from
Silicon Image and DDC (Display Data Channel) from VESA (Video Electronics Standards Association).
DVI can be single or dual link.
Input specifications
Single link DVI
Differential input voltage: 200 mV - 800mV

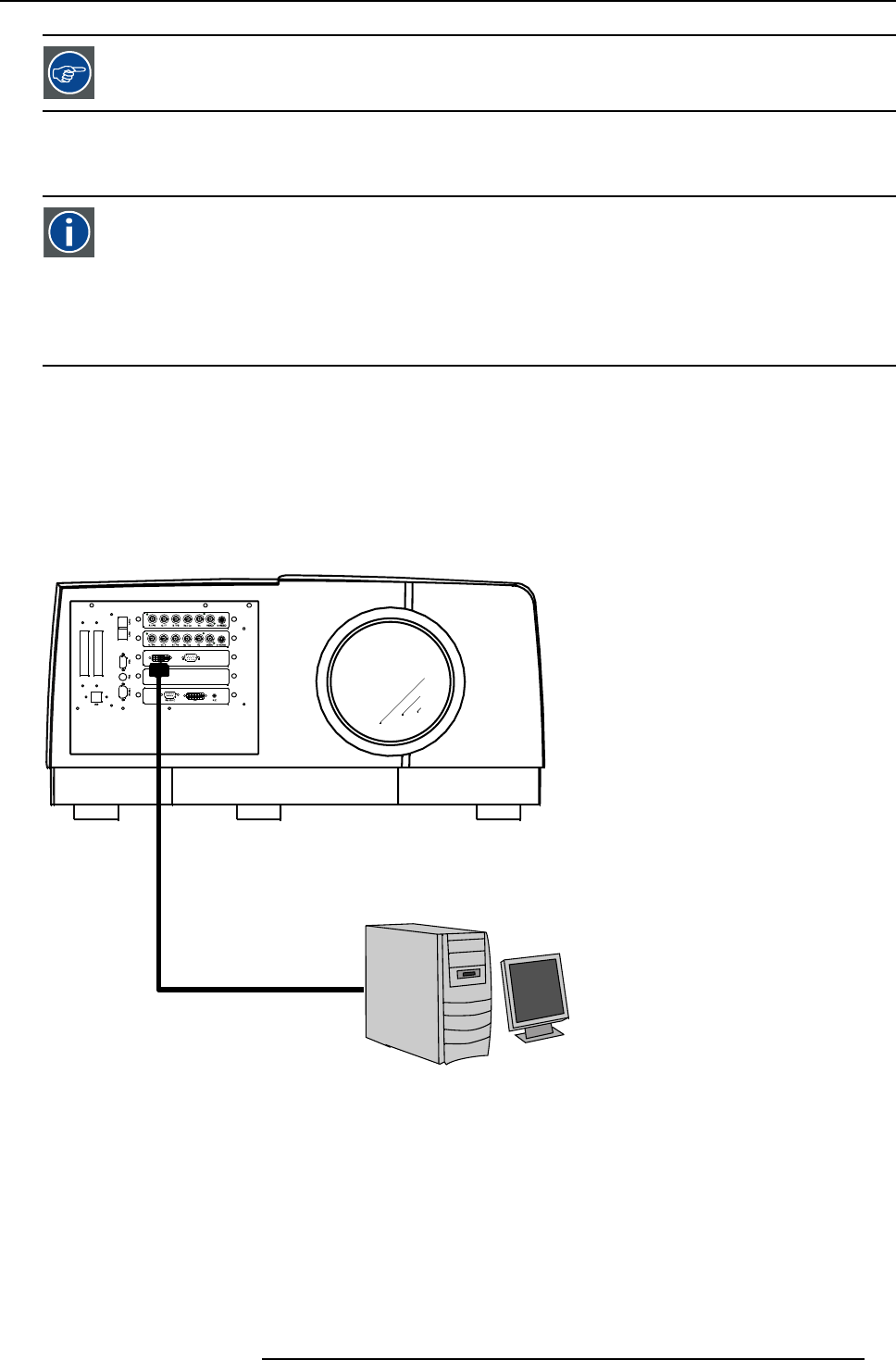

How to connect a DVI signal ?
1. Connect the DVI cable to the DVI input
Image 4-22
4.5.3.8 Connecting a computer signal
How to connect a computer signal
1. Connect the D15 connector to the projector’s Computer input
R5976821 BARCO ICON 15/03/2007
29
