Chapter 4: On-Screen Display
The lower portion of the window displays the HDCP status of the output. The first line shows whether the connected monitor
supports HDCP.
When checked, the next line indicates whether the signal proceeding from the ServSwitch 4site Flex is protected by HDCP. If the
output signal is HDCP encoded, the ServSwitch 4site Flex puts out neither analog video signal nor any separate audio signal.
4.4.2 Hotkey
Navigate with the arrow keys in the SYSTEM menu to the entry HOTKEY and press the ENTER/SELECT key to open the HOTKEY
window.
Two different hotkey modes are available:
• For multiple hotkey commands you can define one to four keys that are pressed simultaneously to enter the command mode.
Selectable keys are: STRG, SHIFT, ALT, and WINDOWS.
• For double-click hotkey commands you can choose one key, that is double-clicked to enter the command mode. Selectable keys
are: STRG, SHIFT, ALT, and SCROLL.
To change the hotkey mode or select another hotkey, navigate with the TAB or ARROW UP/DOWN keys to the respective field
and use the ARROW LEFT/RIGHT or the +/- keys to change the setting.

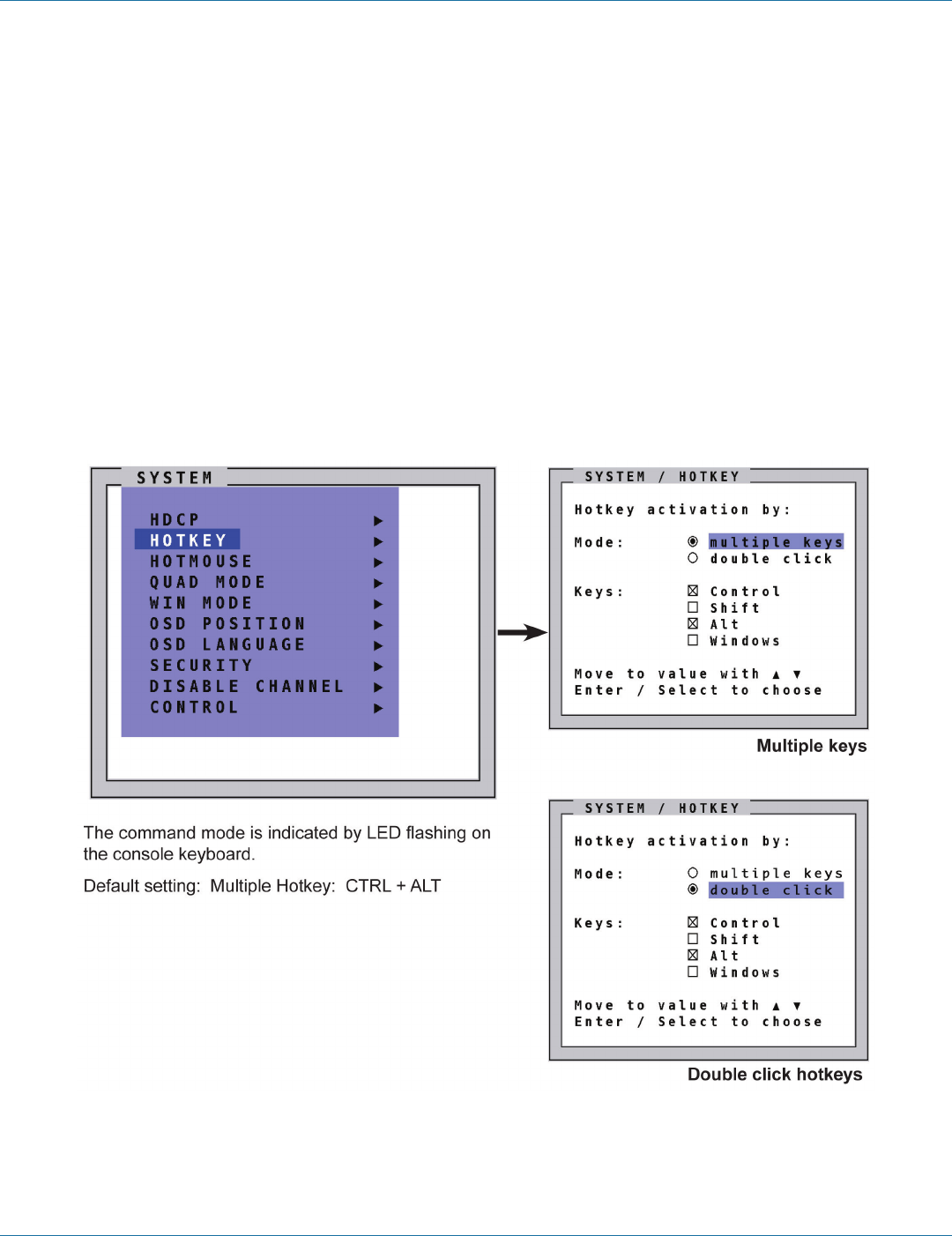

Figure 4-5. System>Hotkey screen.
NOTE: For a list of hotkeys to operate ServSwitch 4site Flex, see Appendix A, Keyboard Commands.
