Page 44
724-746-5500 | blackbox.com
Chapter 6: OSD Configuration
6. OSD Configuration
6.1 Backup
Navigate with the arrow keys in the CONFIGURATION menu to the entry BACKUP.
Press ENTER/SELECT to open the BACKUP window.

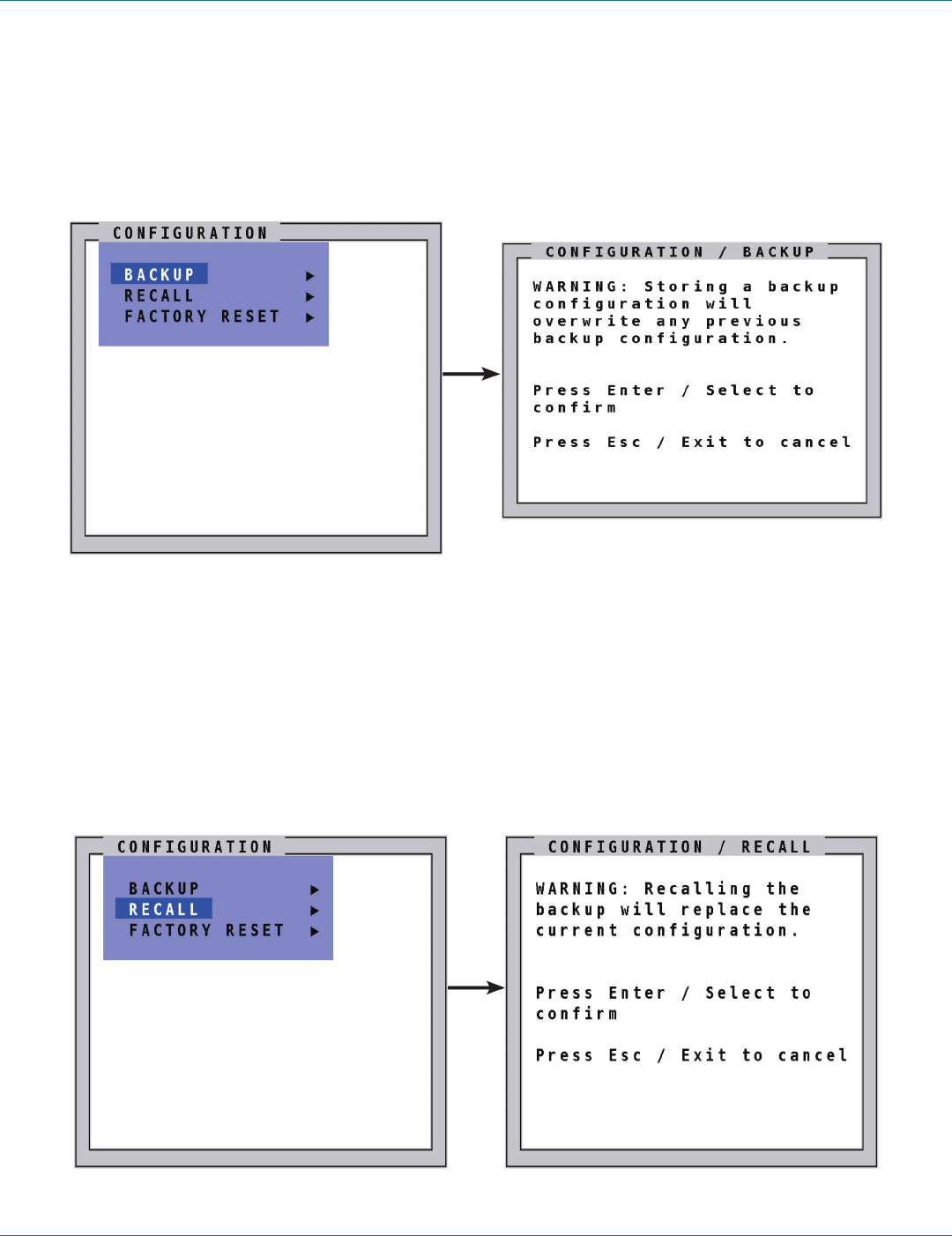

Figure 6-1. Configuration>Backup screen.
This function saves the current device settings, including the start mode set in MODE START. Additionally, EDID data from the 4
inputs is also saved.
For details on creating an external backup to a file, see the section “Device Configuration Program.”
6.2 Recall
CONFIGURATION menu to the entry RECALL
Press ENTER/SELECT to open the RECALL window.
Use this feature to replace the current settings with the last configuration saved using the BACKUP command.
Figure 6-2. Configuration>Recall screen.
