Page 71
Chapter 10: OSD—USB Device 1–4
10. OSD—USB Device 1–4
10.1 USB Port Status
ServSwitch 4site Flex supports and switches transparent USB 2.0 devices such as printer, camera, 3D mouse, finger printer, and
external memory. (Example: Connect a memory stick to copy data from one computer to the stick, and from the stick to another
computer connected to ServSwitch 4site Flex: Data can be copied between computers without being networked.)
Use the arrow keys to navigate in the OSD menu to the entry USB DEVICE 1-4 (see the screen on the left in Figure 10-1) and
press ENTER/SELECT to open the window. The screen on the right in Figure 10-1 shows the status display of the transparent USB
2.0 switch.

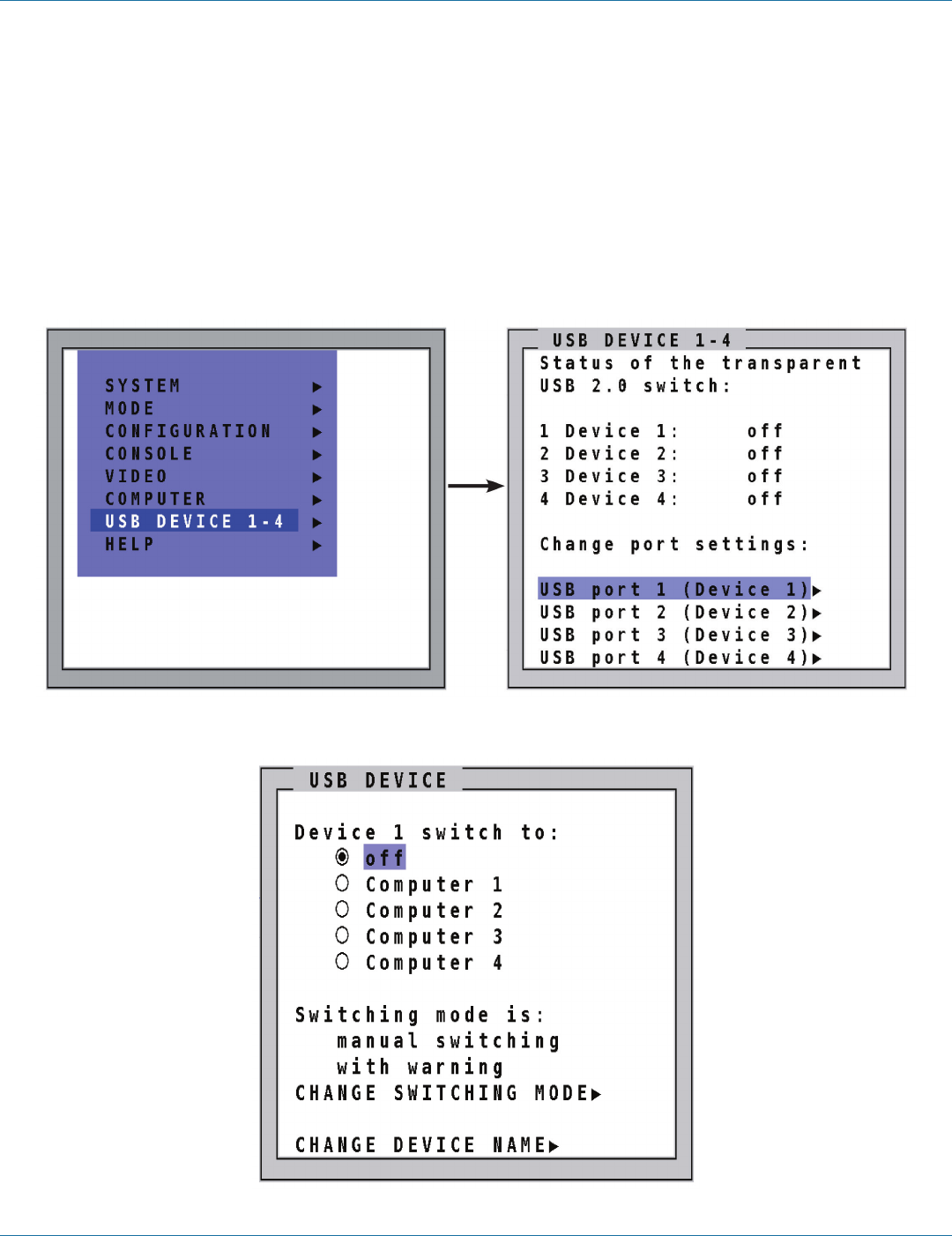

Figure 10-1. USB Device 1–4>USB Device screen.
Figure 10-2. USB Device screen.
