Page 32
724-746-5500 | blackbox.com
Chapter 4: On-Screen Display
For example, if you have connected three computers (Channel 1 to 3) to ServSwitch 4site Flex, use the arrow keys to navigate to
the number 3 and confirm by pressing ENTER/SELECT.
NOTE: To use the “DISABLE CHANNEL” feature, computers/video sources must be connected to ServSwitch 4site Flex in
ascending order from Channel 1 to 4.

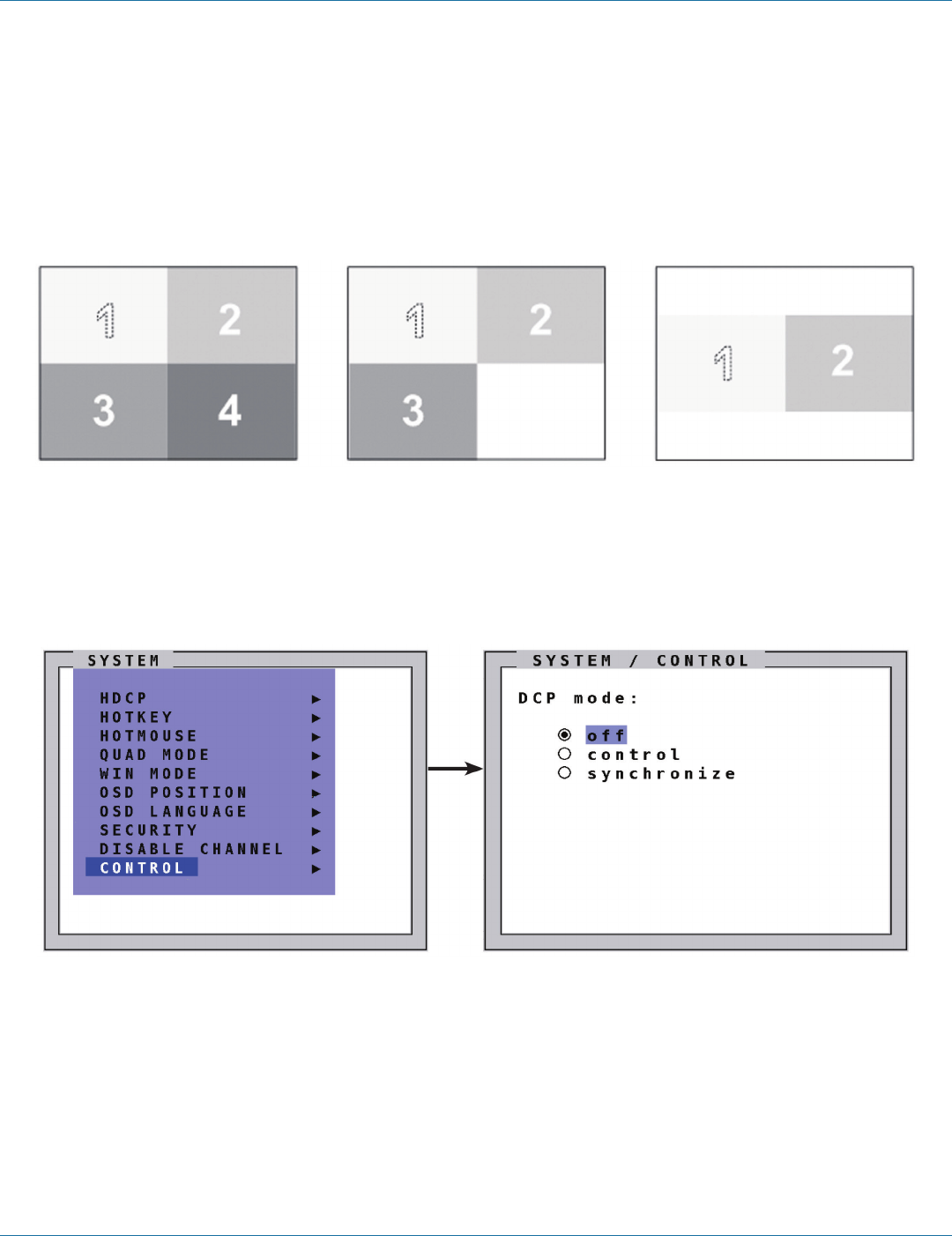

Example in Quad mode:
All four channels enabled
Three channels enabled Two channels enabled
mid-height
Figure 4-16. Quad mode example.
4.4.10 Control
Navigate with the arrow keys in the SYSTEM menu to the entry CONTROL.
Press ENTER/SELECT to open the CONTROL window.
Figure 4-17. System>Control screen, Off selected.
The device can be controlled via Device Control Protocol (DCP), an XML-based protocol (see Appendix E).
There are two DCP modes:
1. DCP control, which allows external control of the display mode.
2. DCP synchronize, which keeps several ServSwitch 4site Flex devices in the same display mode.
NOTE: The default setting is “off,” which prevents any external CONTROL.
Use a serial or USB cable to connect a control unit to the RS-232 port (RJ-45) on the ServSwitch 4site Flex back panel. To
synchronize several devices, special Y cables are required.
