Appendix B: Device Configuration Program

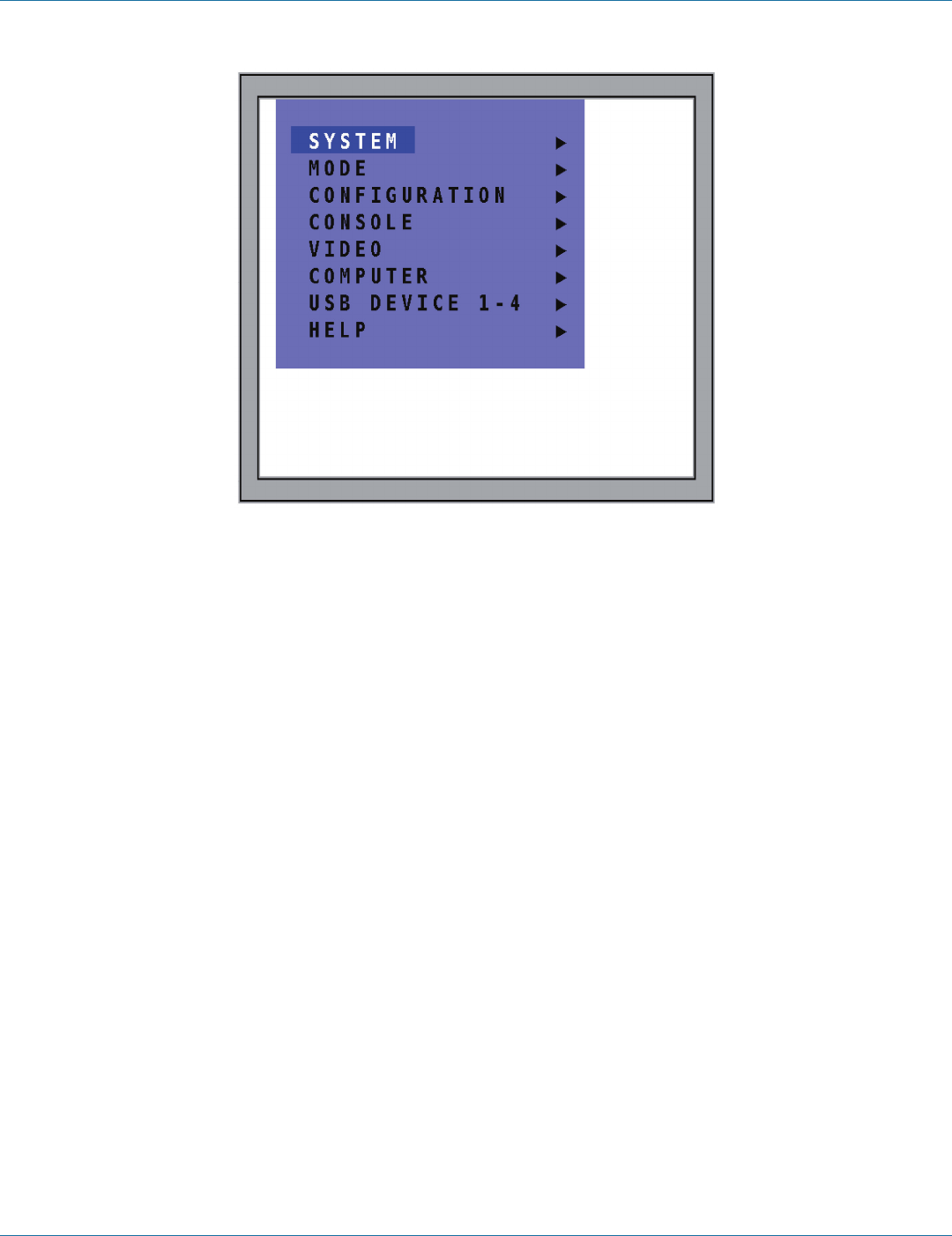

Figure B-4. Navigation screen.
Uploading a background image
A background image can be uploaded to the ServSwitch 4site Flex and will be displayed behind windows when in Win Mode. To
upload an image to the ServSwitch 4site Flex, use the ConfDev menu DEVICE >LOAD BACKGROUND IMAGE.
IMPORTANT: Only 256 color bitmaps are supported for background images. The file used should have a maximum size of 2 MB.
The maximum resolution will be that of the connected monitor.
If an image of another format needs to be used, it must first be converted into a bitmap. There are free tools available like Gimp
or Paint.NET to do this conversion. MS paint available in Windows also supports this conversion. Because of the limited color
count in the bitmap format, the quality of the image may be reduced.
For downloading, a compression algorithm is used. If the image cannot be compressed well, the download can take up to 30
minutes.
