Page 93
Appendix C: Update ServSwitch 4site Flex Firmware
Appendix C: Update ServSwitch 4site Flex Firmware
To execute a firmware update, you need:
• a computer with serial or USB port
• the enclosed “serial cable” (RJ-45-DB9 adapter + RJ-45 CAT5 cable) or a USB cable (USB-A/USB-B)
• the current executable firmware file
Follow these steps:
1a. Use the serial cable to connect the COM port of your computer to the RS-232 port on ServSwitch 4site Flex.
OR
1b. Use the USB cable to connect the USB port of your computer to the USB port on ServSwitch 4site Flex.
NOTE: The virtual COM port USB driver can be downloaded from the Future Technology Devices International Ltd. Web site at
www.ftdichip.com/Drivers/VCP.htm
COMUSB

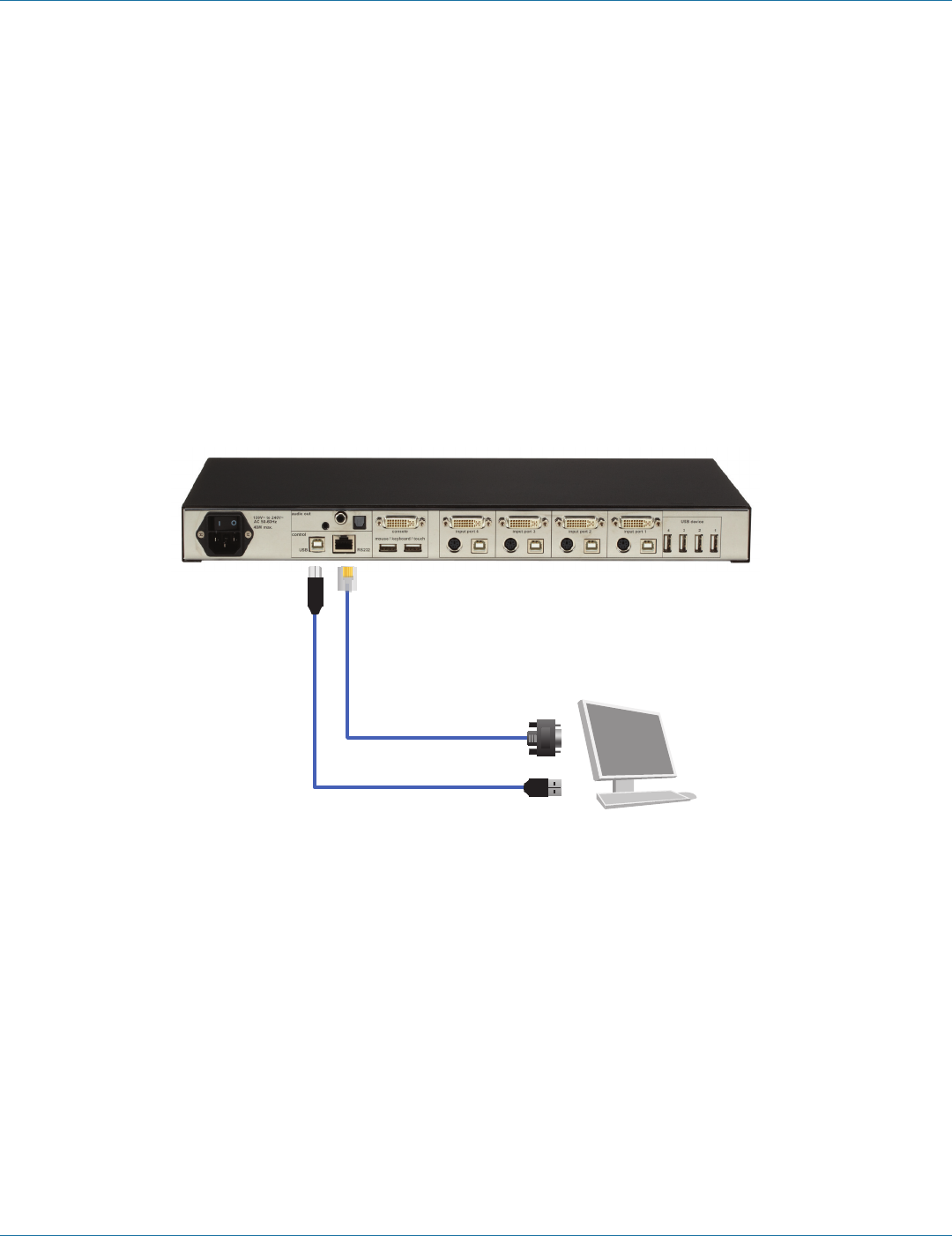

Figure C-1. Rear panel.
