Page 43
Chapter 5: OSD Mode
We recommend that you use all available test patterns for the test procedure.
To exit TEST PATTERN mode, use the OSD, the front-panel buttons (Full, Quad, PiP or Win), or hotkey commands accordingly.

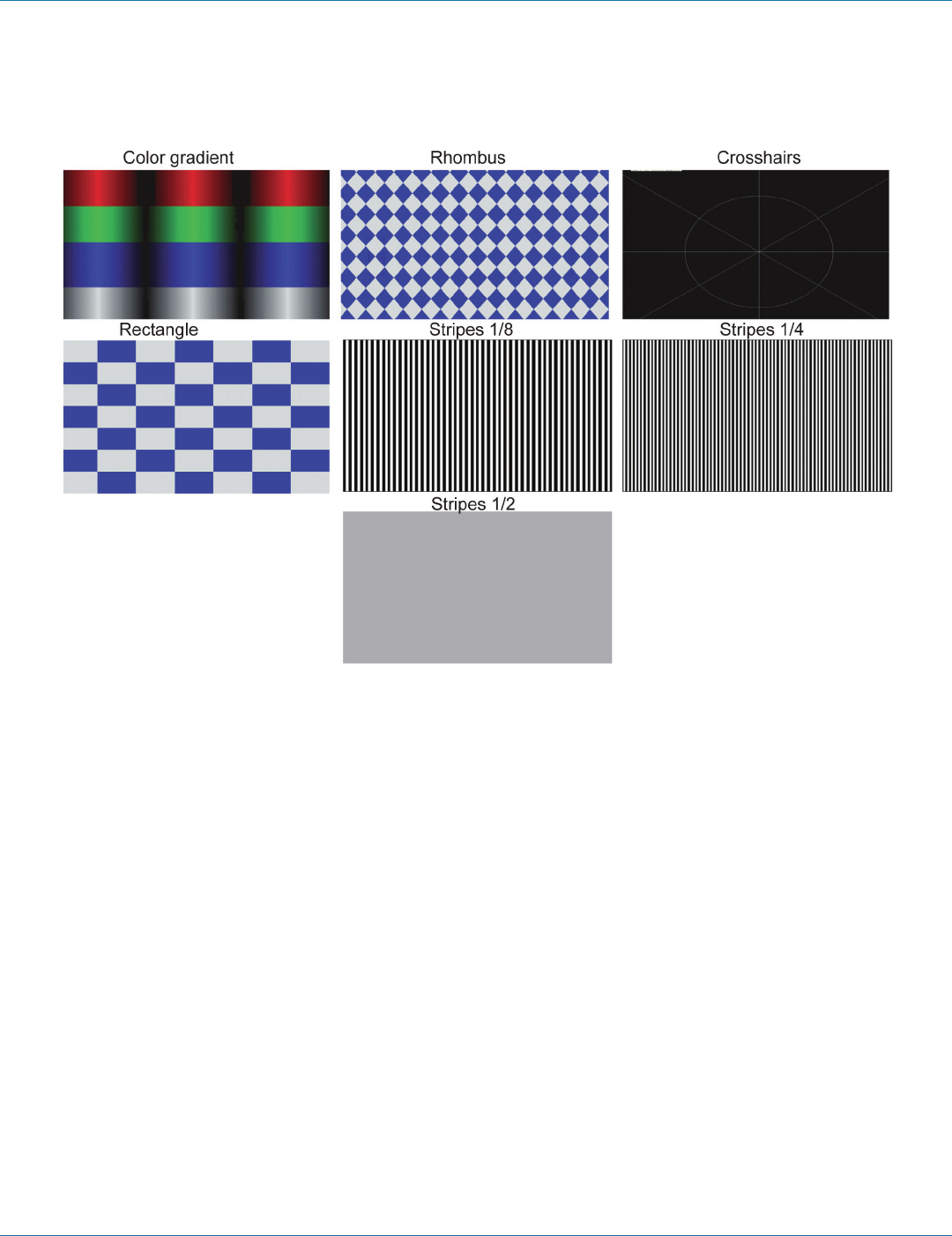

Figure 5-14. Test patterns.
