Chapter 5: OSD Mode
5. OSD Mode
5.1 Current
Defines the current mode in which the device should run.

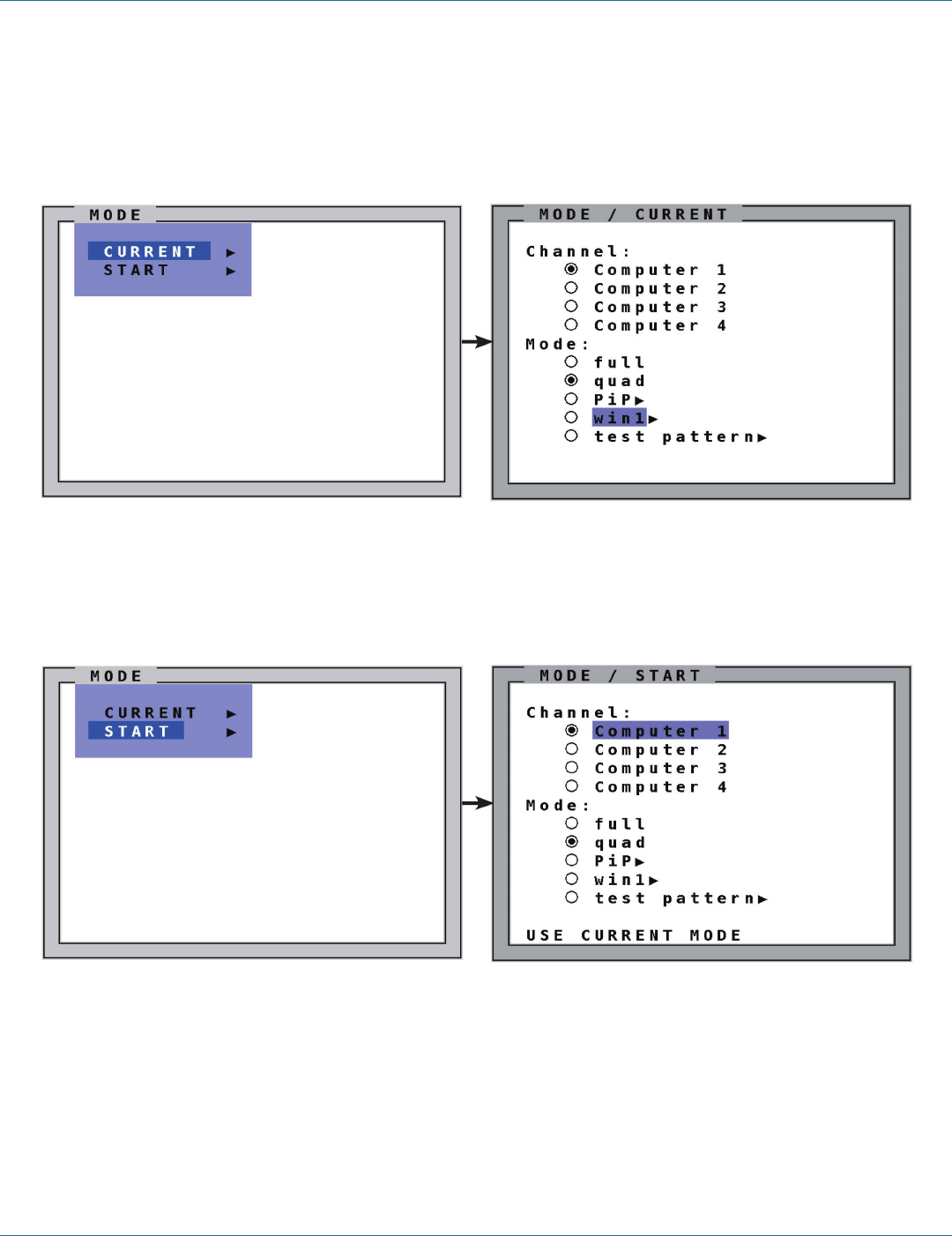

Figure 5-1. Mode>Current mode screen.
Choose from Full-Screen, Quad, PiP, or Win Mode, or Test Pattern.
5.2 START
Sets the mode in which the device should boot.
Figure 5-2. Mode>Start mode screen.
This feature allows you to define the start configuration, i.e. the display mode (Full-Screen, Quad, PiP, or Win Mode, or Test
Pattern), active channel, and PiP settings that ServSwitch 4site Flex uses after a reset or when the system is powered up.
When the START menu is called up, the current start configuration is displayed. To modify your start configuration, change
parameters in the channel, mode, and PiP fields. Press ESC to save the new parameters and exit the START menu.
Choose “Use current mode” to adopt the current settings as start mode. Use arrow keys to navigate to “Use current mode” and
confirm by pressing ENTER.
The factory default start mode is Quad-mode with active channel 1.
