Page 61
Chapter 8: OSD Video
By default, “fit to screen” is disabled to display each source in its native aspect ratio in display modes (Quad, PiP, Full) of
ServSwitch 4site Flex.

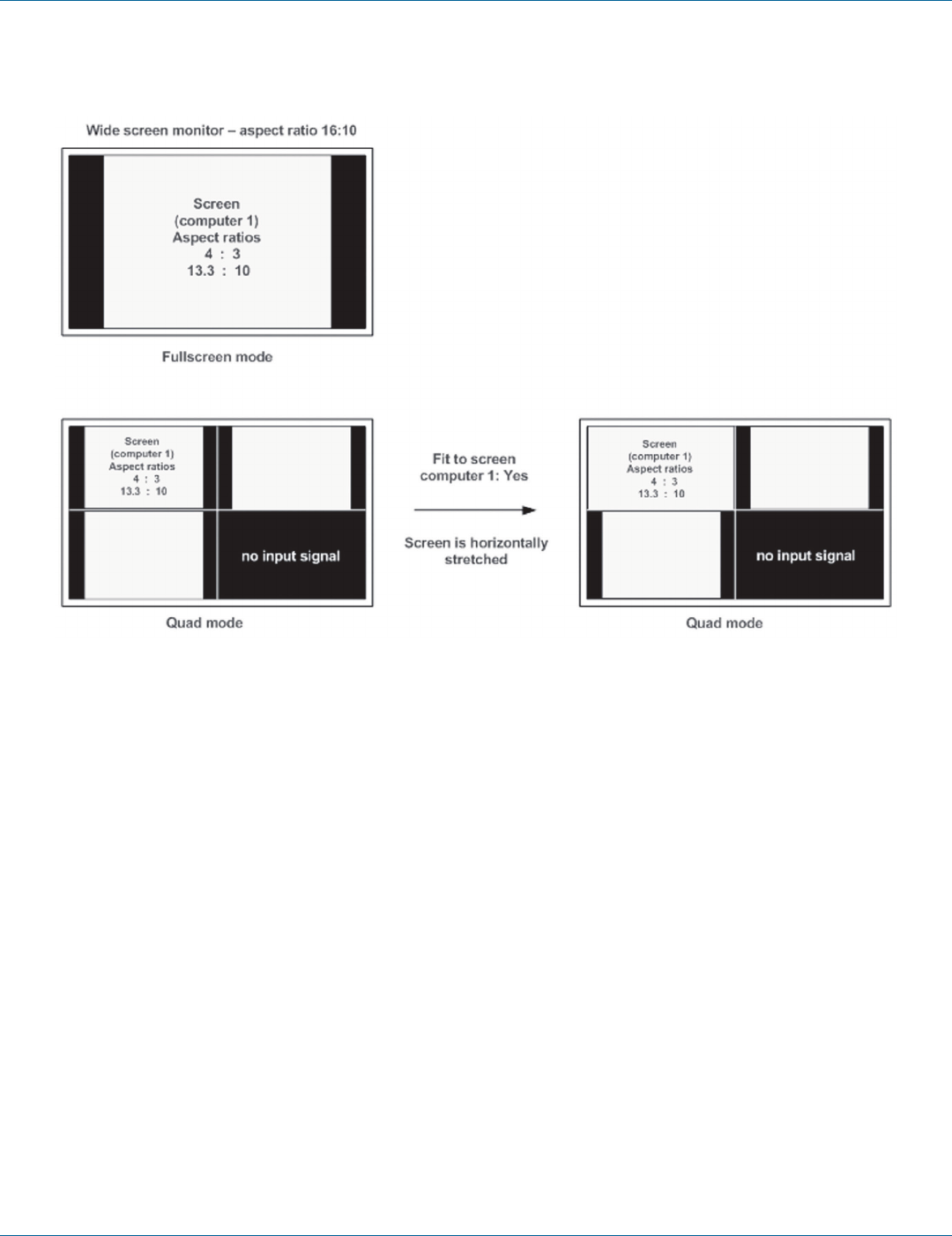

Figure 8-11. Wide-screen monitor in Quad mode.
PiP mode for wide-screen monitors
If you use a wide-screen monitor (for example with an aspect ratio of 16:10) and the active channel does not have a wide-screen
aspect ratio (e.g. 4:3), PiPs are placed aside the full image of the active channel in the black bar on the right side. The full image
of the active channel is displayed left-aligned on the screen resulting in a black bar on the right side. Provided appropriate PiP size
(20%) is set, PiP images are thus placed entirely outside the full-screen channel. No screen content is overlapped. All content of all
sources is visible.
