Page 48
724-746-5500 | blackbox.com
Chapter 7: OSD Console
If the monitor does not offer this data, the ServSwitch 4site Flex sets VGA mode (640x480@60Hz) as the default and activates
Sync on Green.
Sync on Green can be deactivated on the ServSwitch 4site Flex.

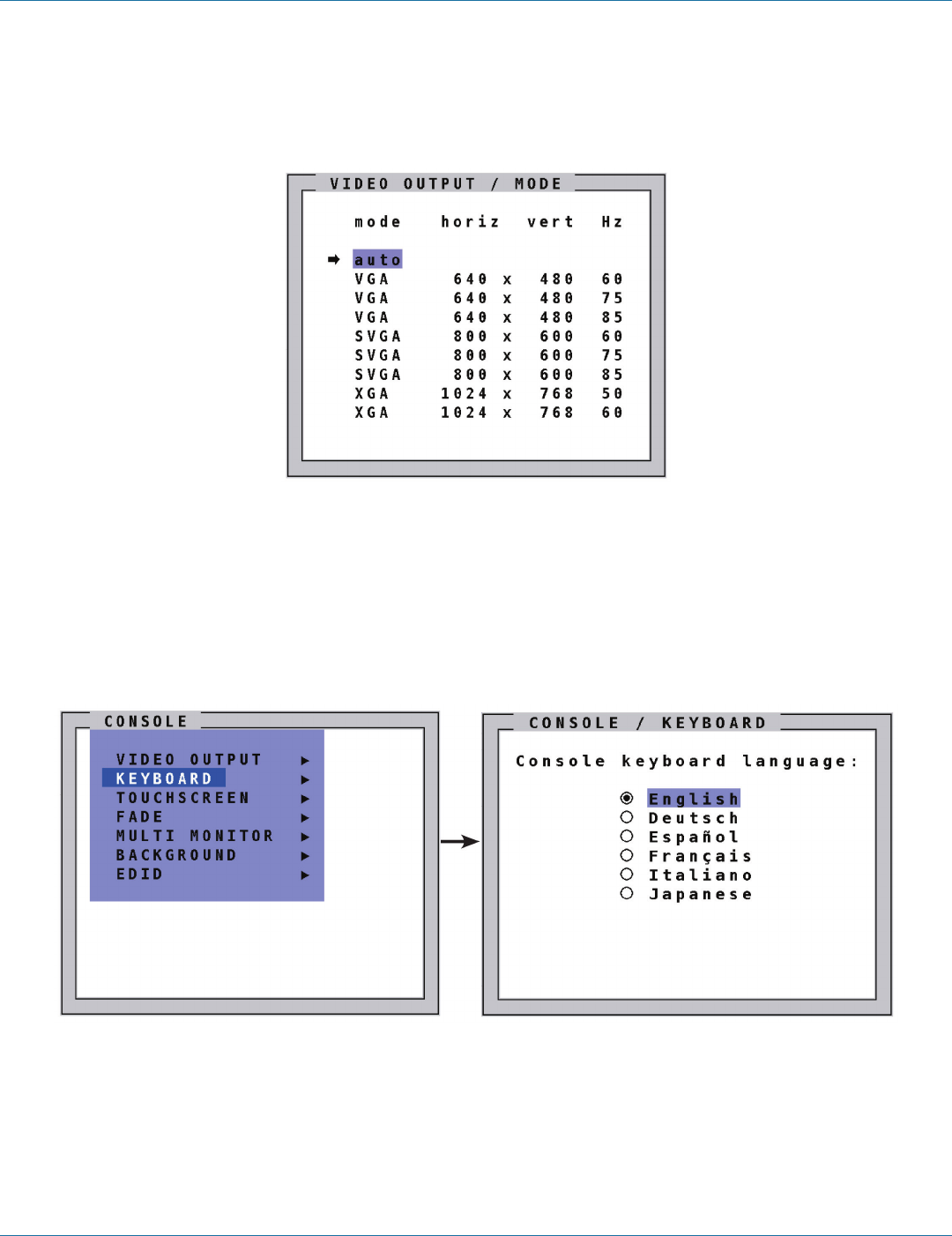

Figure 7-3. Video Output/Mode screen.
7.2 Keyboard
Navigate with the arrow keys in the CONSOLE menu to the entry KEYBOARD.
Press ENTER/SELECT to open the KEYBOARD window.
Set the keyboard layout to the desired language, English, Deutsch (German), Español (Spanish), Français (French), Italiano (Italian)
or Japanese.
Figure 7-4. Console>Keyboard screen.
7.3 Touchscreen
ServSwitch 4site Flex enables the user to use a touchscreen to control and switch between four computers as well as change
display modes.
ServSwitch 4site Flex supports a great number of USB touchscreens with commonly integrated touch controllers. For a list of
supported touchscreens, see Appendix F.
