Chapter 9: OSD Computer
9.4 Keyboard
Use arrow keys to navigate in the COMPUTER menu to the entry KEYBOARD and press ENTER/SELECT to open the KEYBOARD
window.

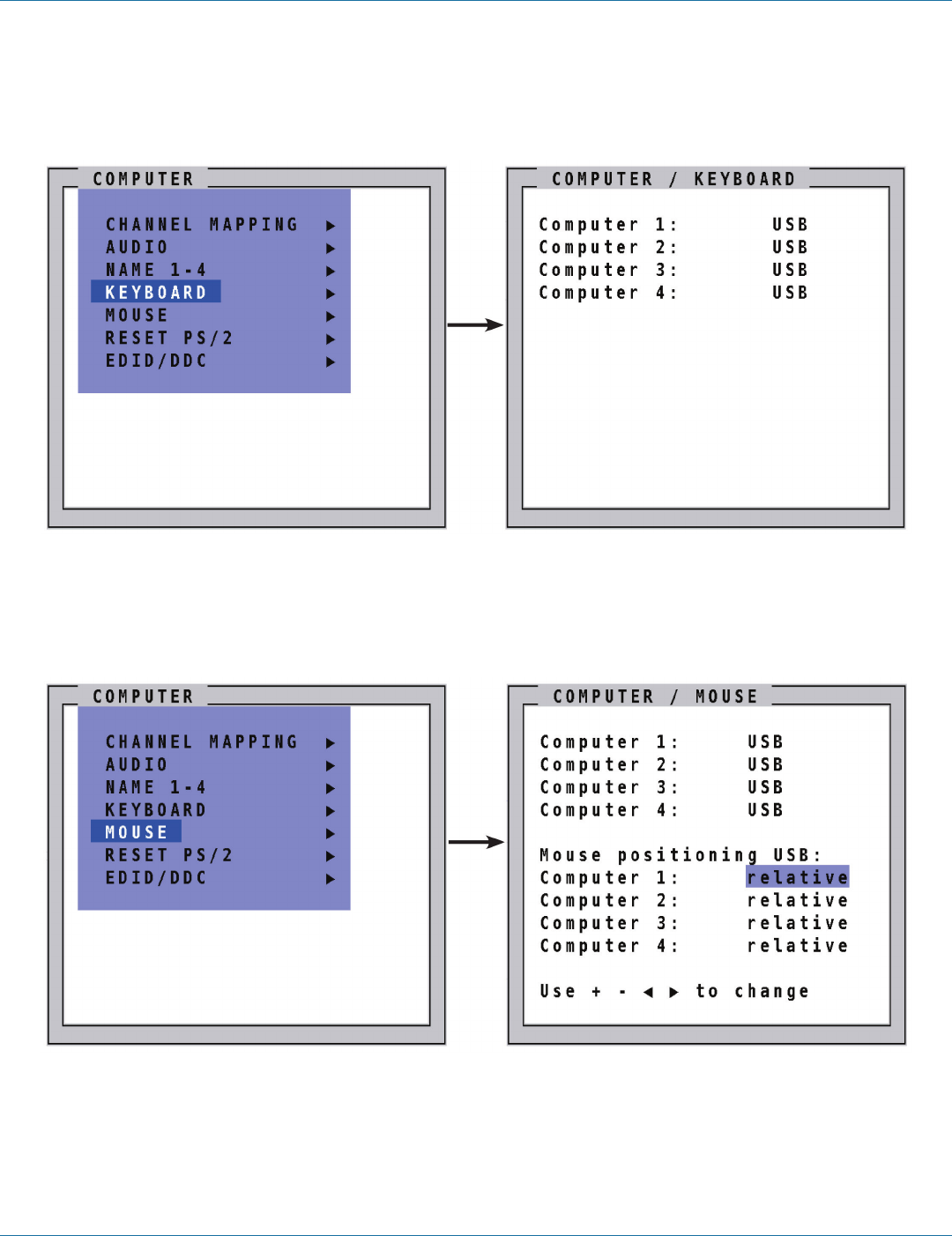

Figure 9-4. Computer>Keyboard screen.
Use this display feature to identify which keyboard type (USB, PC1, PC2 or PC3) has been recognized at which computer port.
9.5 Mouse
Use the arrow keys to navigate in COMPUTER menu to the MOUSE line and press ENTER/SELECT to open the MOUSE window.
Figure 9-5. Computer>Mouse screen.
The upper half of the MOUSE window shows which mouse type (USB, PS/2, or PS/2 wheel) has been recognized at which
computer port.
