Chapter 8: OSD Video
8.2 DVI/VGA
Use arrow keys to navigate in the VIDEO menu to the entry DVI/VGA and press ENTER/SELECT to open the DVI/VGA window.

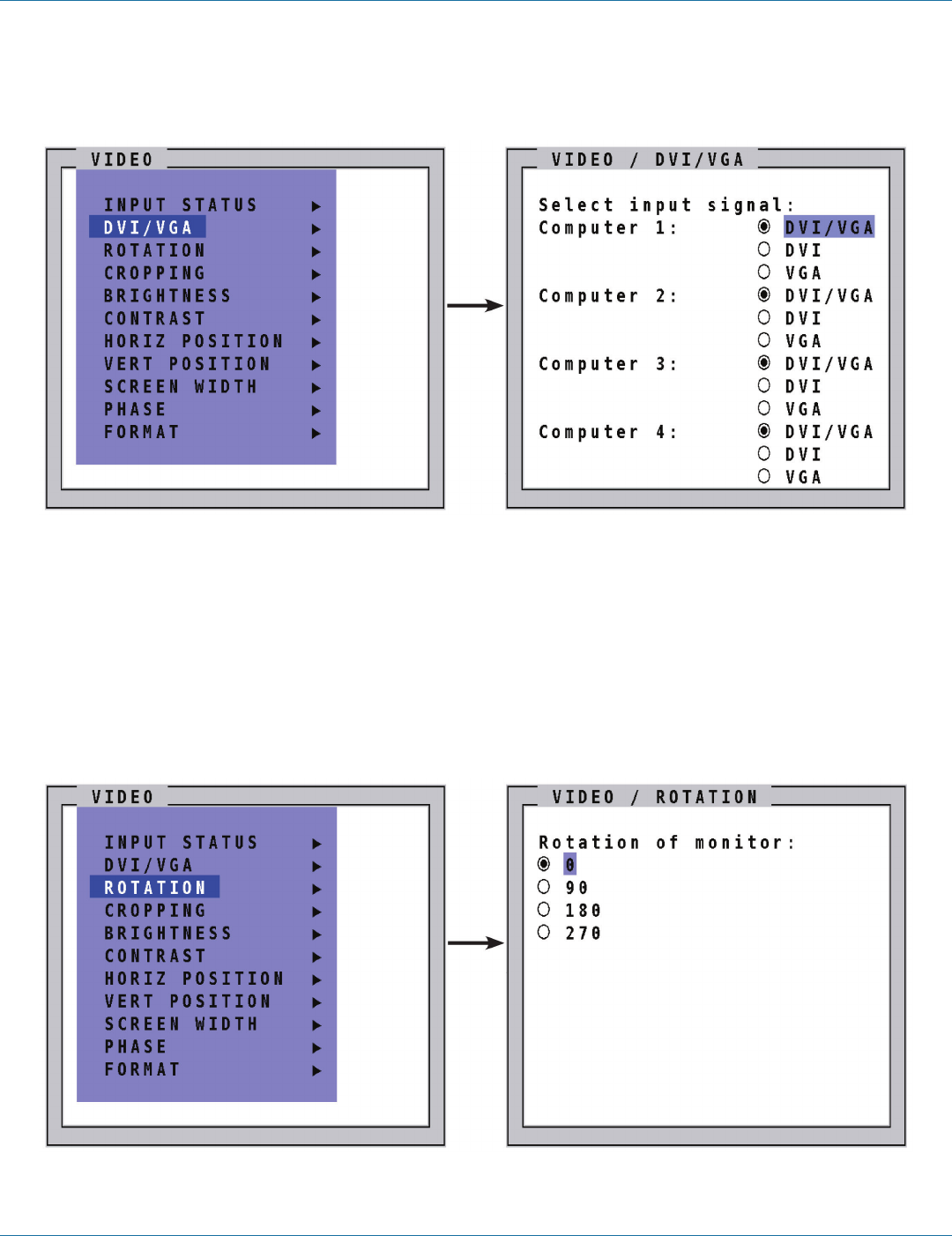

Figure 8-2. Video>DVI/VGA screen.
Go to “Select input signal” and define which video signal (VGA or DVI) is to be displayed. If the setting “DVI/VGA” is selected,
ServSwitch 4site Flex will first check the digital input. If there is no signal at this input, the analog signal input will be checked.
This function can be used to connect, for example, 8 sources (4x VGA + 4x DVI) via Y-cables to ServSwitch 4site Flex.
8.3 Rotation
Use the arrow keys to navigate in the VIDEO menu to the entry ROTATION and press ENTER/SELECT to open the ROTATION
window.
Figure 8-3. Video>Rotation screen.
