Page 52
724-746-5500 | blackbox.com
Chapter 7: OSD Console
7.5 Multi Monitor
Use arrow keys to navigate in the CONSOLE menu to the entry MULTI MONITOR and press ENTER/SELECT to open the MULTI
MONITOR window.

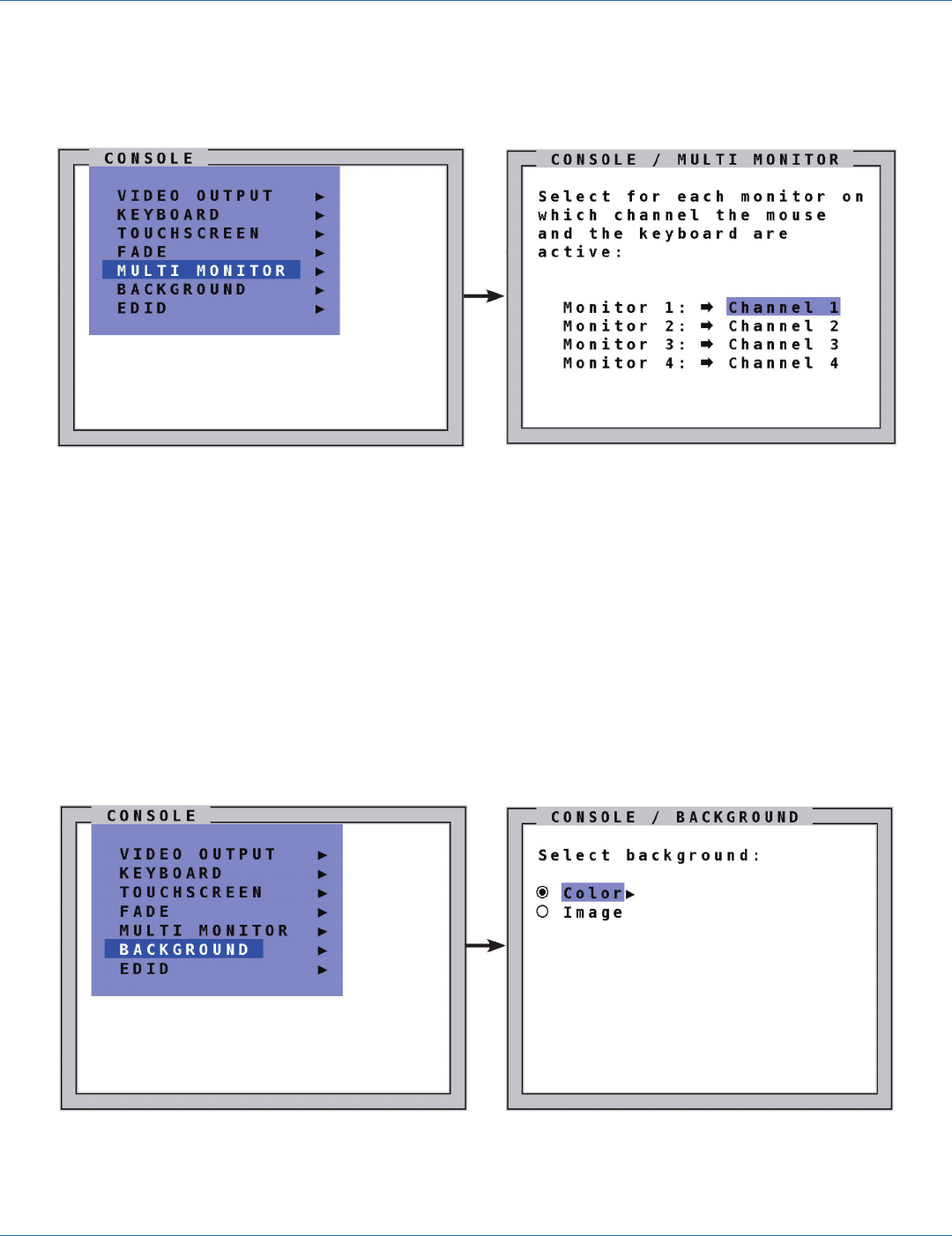

Figure 7-9. Console>Multi Monitor screen.
Multi Monitor is used if computers with multiple video outputs are connected to the ServSwitch 4site Flex but only one keyboard
and mouse are operating the computer. If you use graphics cards with multiple video outputs, you must assign the computer’s
mouse and keyboard to the corresponding video output (Channels 1–4).
Example:
If a computer with quad-head graphics card is connected to ServSwitch 4site Flex, and the keyboard and mouse are connected to
Channel 1, you must assign console “Channel 1” to all video channels (“Monitor 1–4”).
7.6 Background
Use arrow keys to navigate in the CONSOLE menu to the entry BACKGROUND and press ENTER/SELECT to open the
BACKGROUND window.
Figure 7-10. Console>Background screen.
