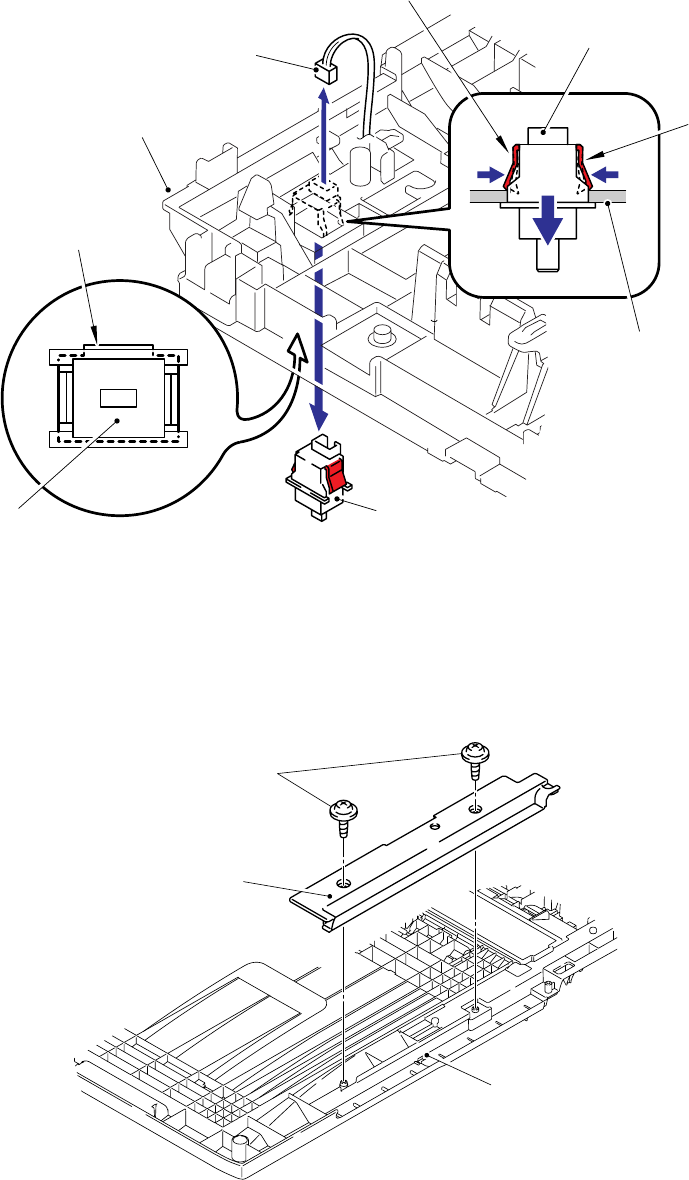

(84) Disconnect the Connector from the Document cover sensor.
(85) Pull the Document cover sensor downwards to remove it from the Document cover sub
ASSY while pressing the Hooks of the Document cover sensor.
Fig. 3-118
(86) Turn the Document cover sub ASSY upside down.
(87) Remove the two cup B M3x10 Taptite screws, and then remove the Handle cover.
Fig. 3-119
Hook
Connector
Document cover sub ASSY
Hook
Document cover sensor
Document cover sensor
Boss
Document cover sub ASSY
Handle cover
Taptite, cup B M3x10
<Bottom>
<Left side>
Document cover sensor
Document cover sub ASSY
