Performing Tests
Full Site Test (FCC)
Chapter 4
67
Performing Tests

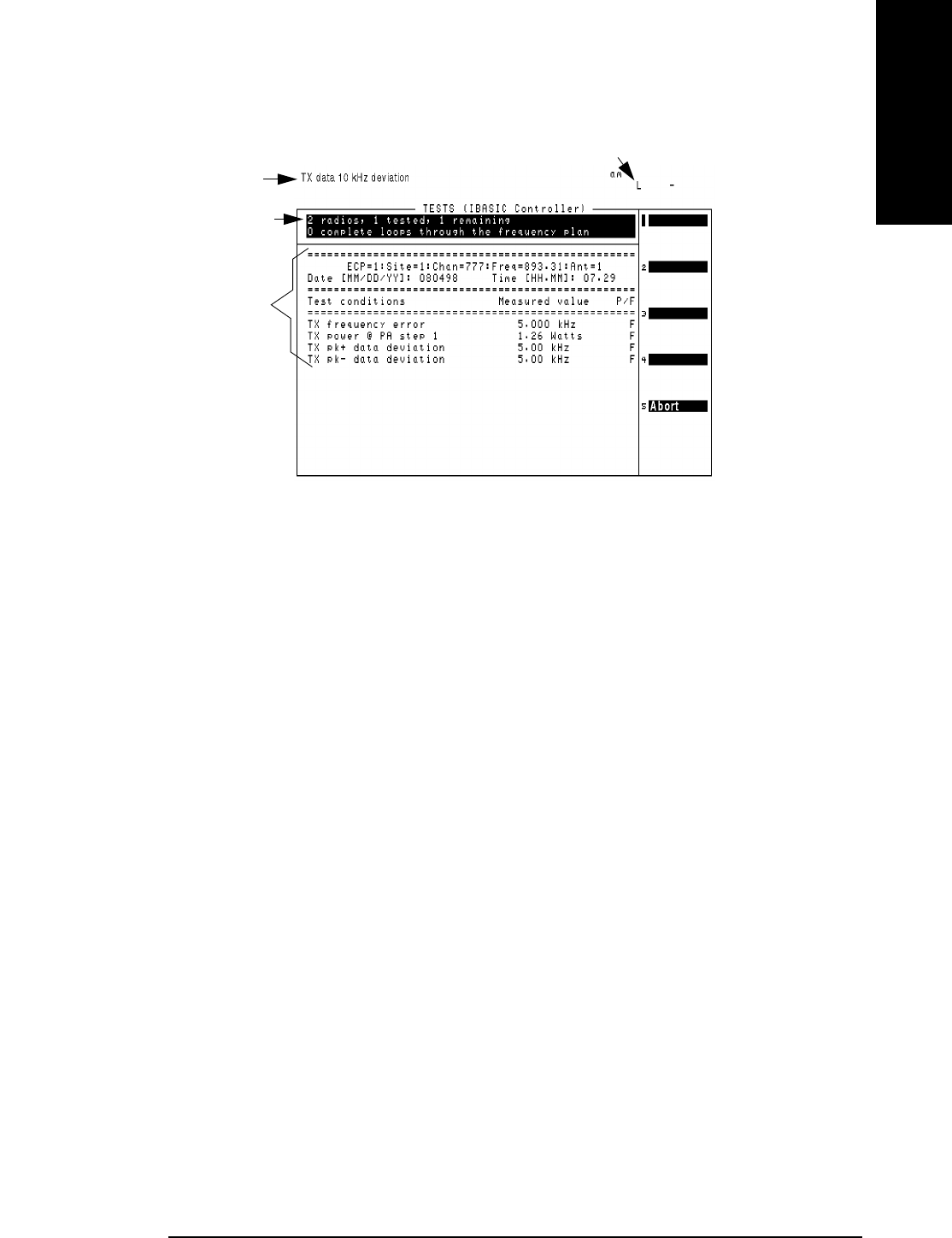

Figure 4-4 Full Site Test Results for One AMPS Setup Radio
Measurement or
action in progress.
Testing status.
Test results for one
of the radios being
tested.
IBASIC Controller Status*
*The IBASIC status indicators reflect the current state of the Test Set internal controller.
An “L” means it is monitoring for a program command. A “T” means it is communicating
with the Test Set or other connected HP-IB (HP Interface Bus: IEEE 488.2) device. A “C”
means it is configured as the HP-IB controller to control external HP-IB devices. An
asterisk (*) means the Test Software is running. A hyphen (-) means the Test Software is
paused. An “R” means the Test Set is being controlled remotely (in this case, by a
program working through the internal HP-IB).
