- 65 -
ESC W xL xH yL yH dxL dxH dyL dyH
CT-S280 CT-S300 CT-S2000 CT-S4000 BD2-2220 CT-S310
support model
PMU2XXX
[Function] Defining the print area in PAGE MODE
[Code] <1B>H<57>H<xL><xH><yL><yH><dxL><dxH><dyL><dyH>
[Range] 0≦xL、xH、yL、yH、dxL、dxH、dyL、dyH ≦255
except for dxL = dxH = 0 or dyL = dyH = 0
[Outline] [The specification which is common to the model]
Defines the location and size of the print area.
• Horizontal start point = [(xL+xH×256)×basic calculation pitch] inches
• Vertical start point = [(yL+yH×256)×basic calculation pitch] inches
• Horizontal length = [(dxL+dxH×256)×basic calculation pitch] inches
• Vertical length = [(dyL+dyH×256)×basic calculation pitch] inches
[Caution] • When STANDARD MODE is selected, this command only executes the internal flagging of the
printer without affecting the printing in STANDARD MODE.
• If the horizontal start point or vertical start point is out of the printable area, this command is
canceled and the next data is handled as normal data.
• If the horizontal length or vertical length is 0, this command is canceled and the next data is
handled as normal data.
• The character mapping position will be the start point specified by ESC T in the print area.
• If the “horizontal start point + horizontal length” is greater than the horizontal printable area, the
“horizontal printable area – horizontal start point” is taken as the horizontal length.
• If the “vertical start point + vertical length” is greater than the vertical printable area, the “vertical
printable area – vertical start point” is taken as the vertical length.
• The basic calculation pitch is defined by GS P. Once defined, the print area is not changed if the
basic calculation pitch is changed by GS P.
• Fractions resulting from calculations are corrected with the minimum pitch of the mechanism, and
the remainder is omitted.
• The horizontal start point and horizontal length are calculated with the basic calculation pitch (x).
The vertical start point and vertical length are calculated with the basic calculation pitch (y).

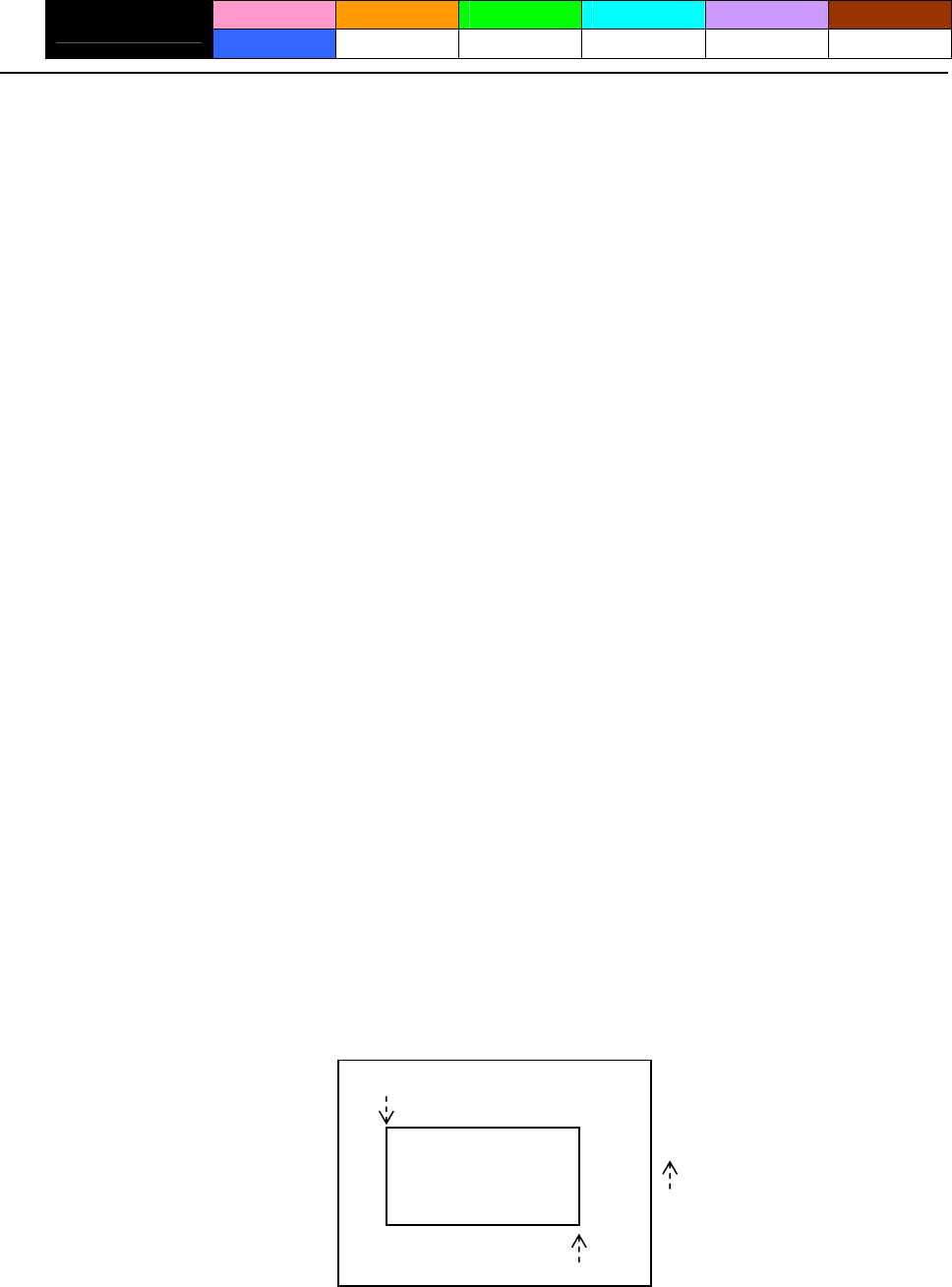

• The figure below illustrates the print area, where X = horizontal start point, Y = vertical start point,
Dx = horizontal length, and Dy = vertical length.
（X、Y）
Paper
Dx
Dy
Prin
• The printable area is approximately 117 mm (938/203 inches) vertically, and horizontal area
depends on the model. (Refer to the below Table)
t
（X+Dx-1、Y+Dy-1）
Pa
p
er feed direction
