Secure Perfect 6.1.1 User Manual 221
Port Settings Tab
Micro Form
This tab displays only when you are configuring a micro type as direct-connect, network, network +

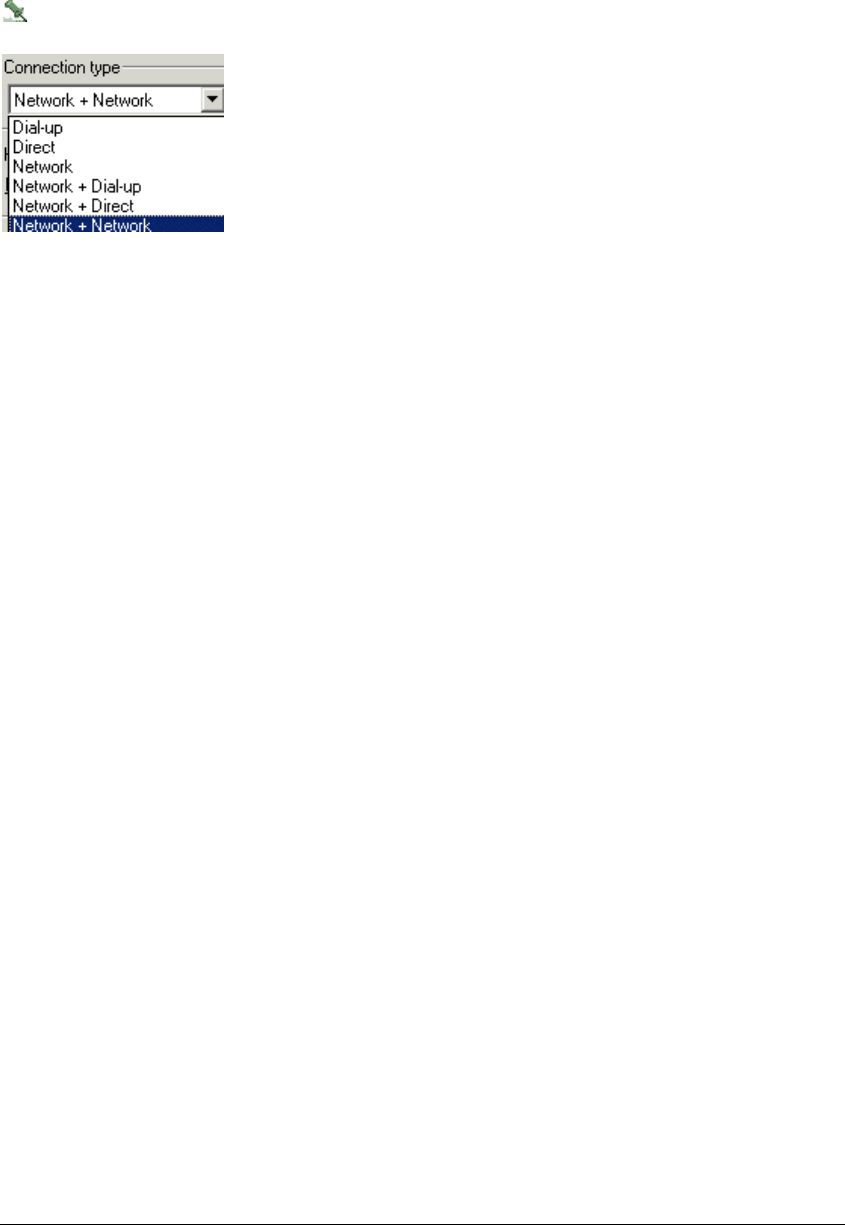

direct, or network + network micro type. Refer to the Connection type figure below:
Direct Configuration
COM port:
You will be able to change this setting ONLY if the micro connection type is direct-connect or network +
direct. Otherwise, this field is unavailable. From the drop-down list, select the COM port to which this
micro is connected. The system operates with the default setting of None if no port is designated.
NETWORK CONFIGURATION
Primary Network (you must complete ONE of the following two selections):
These fields are available ONLY if the micro is other than a direct-connect or dial-up micro.
IP Address: Select this option and then enter the IP address for network configuration.
Network Name: Select this option and then enter the network name for the micro that hosts this micro.
Secondary Network (you must complete ONE of the following two selections):
IP Address: Select this option and then enter the secondary IP address assigned for network + network
communications.
Network Name: Select this option and then enter the secondary network name for the micro that hosts
this micro.
Preset/Camera Selection
Select or change an already defined camera from the drop-down list, then select or change a Preset from
the Preset drop-down list. Click OK to display in the results in the Assigned Preset/Camera windowpane.
