To force the server to start from the backup copy, turn off the server; then, place jumper JP6 in the
backup position (pins 2 and 3).
v Pins 1 and 2: Boot from primary BIOS page (default) .
v Pins 2 and 3: Boot from backup BIOS page.
Use the backup copy of the server firmware until the primary copy is restored. After the primary copy is
restored, turn off the server; then, move jumper JP6 back to the primary position (pins 1 and 2).
Microprocessor
Heatsink
Orientation
DIMMs
DIMMs

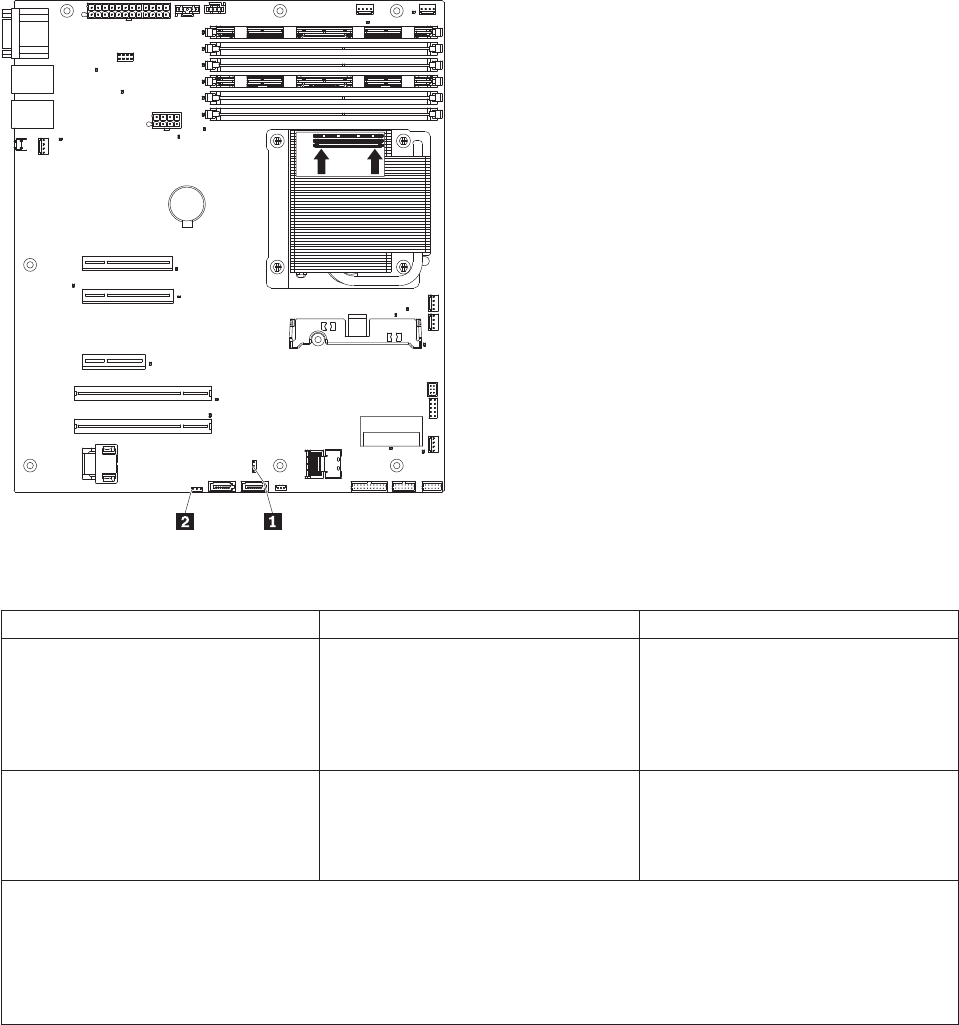

The following table describes the jumpers on the system board.
Table 25. System board jumpers
Jumper number Jumper name Jumper setting
JP1 Clear CMOS jumper 1
v Pins 1 and 2: Keep CMOS data
(default).
v Pins 2 and 3: Clear CMOS data
(including power-on password and
administrator password)
JP6 Boot block jumper 2
v Pins 1 and 2: Boot from primary
BIOS page (default) .
v Pins 2 and 3: Boot from backup
BIOS page.
Notes:
1. If no jumper is present, the server responds as if the pins are set to 1 and 2.
2. Changing the position of the UEFI boot recovery jumper from pins 1 and 2 to pins 2 and 3 before the server is
turned on alters which flash ROM page is loaded. Do not change the jumper pin position after the server is
turned on. This can cause an unpredictable problem.
214 ThinkServer ThinkServer RS210, Types 6531, 6532, 6533, and 6534: Hardware Maintenance Manual
