3. Hold the battery card assembly with the battery side up and the J5 board-to-board connector lining
up with the J10 BBU connector 1 on the RAID card. Carefully press the battery card assembly onto
the RAID card so that the two connectors are rmly joined. Then, secure the battery card assembly
to the RAID card with the three screws and the standoffs that come with the battery card assembly
accessory kit.

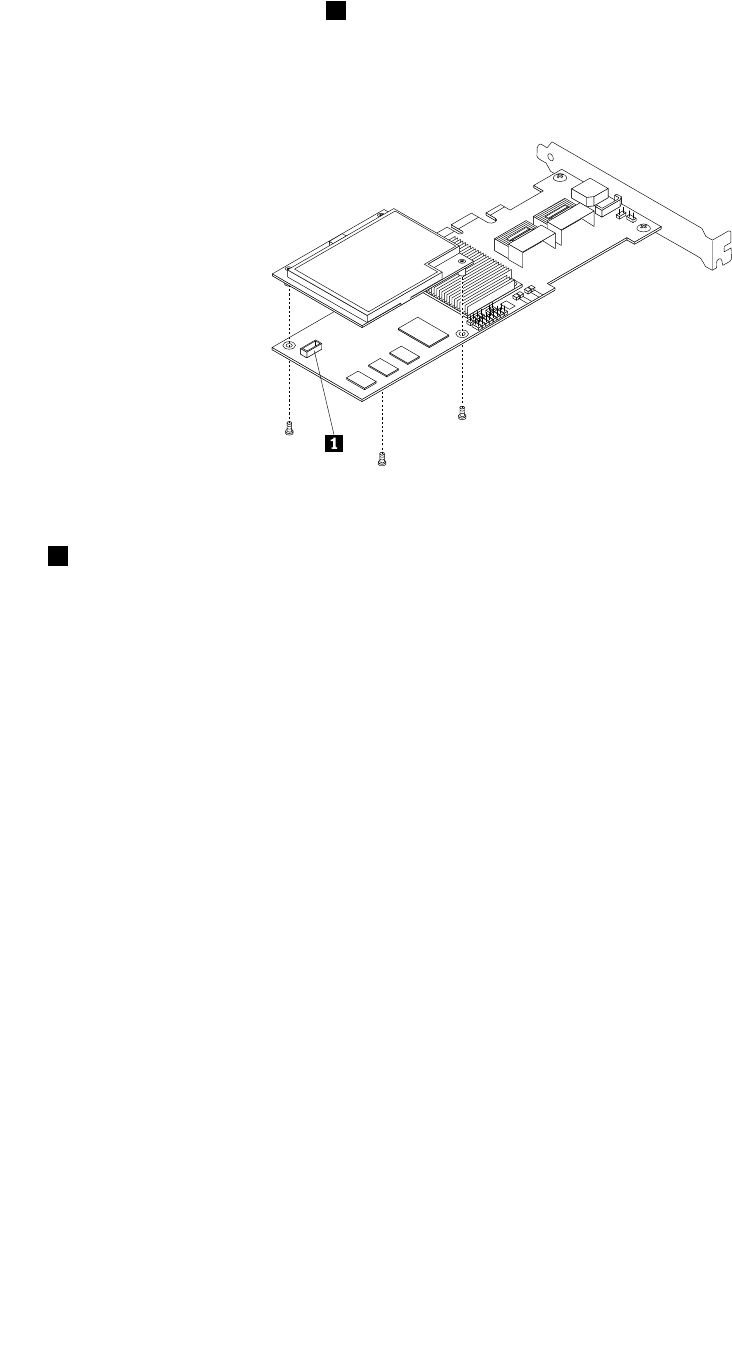

Figure 60. Installing the battery card assembly onto the RAID card
1 J10 BBU connector
Connecting the mini SAS cable
This topic provides instructions on how to connect the mini SAS signal cable to the RAID card and the
hot-swap hard disk drive backplanes.
Your server comes with an 880 mm (34.65 inches) mini SAS cable with four mini SAS connectors. The four
SAS connectors of the cable connect to the four SAS connectors on the hot-swap hard disk drive backplanes.
94 ThinkServer TD230 Hardware Maintenance Manual
