• If you want to secure the hard disk drive in the bracket by screws, align the screw holes in both sides
of the hard disk drive with the corresponding holes in the bracket. Then, install the four screws to
secure the hard disk drive in the bracket.

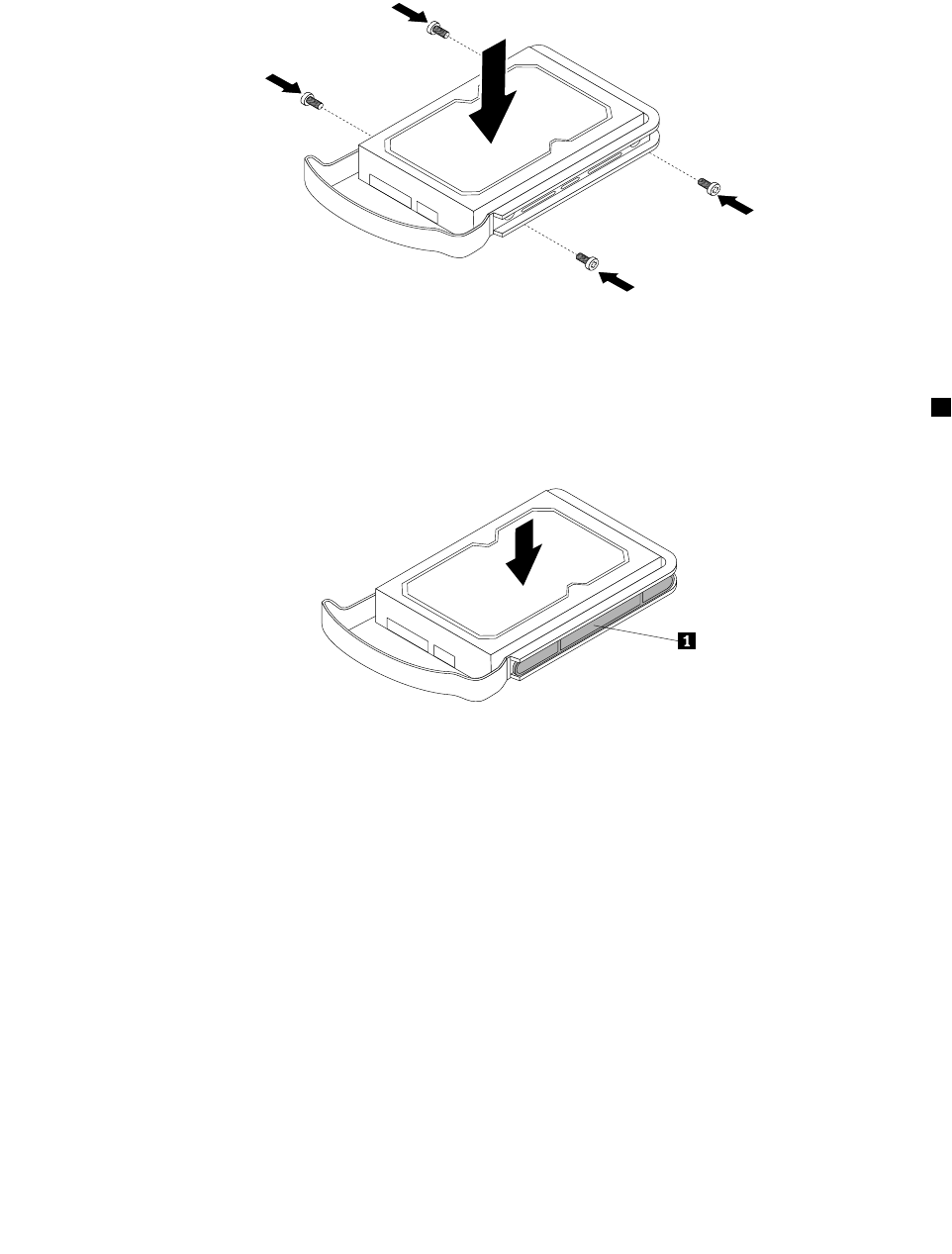

Figure 41. Securing the hard disk drive in the bracket by screws
• If you want to secure the hard disk drive in the bracket by retainers, align the holes in both sides of
the hard disk drive with the corresponding holes in the bracket. Then, carefully install the retainers 1
on both sides to secure the hard disk drive in the bracket.
Figure 42. Securing the hard disk drive in the bracket by retainers
Chapter 5. Replacing FRUs 71
