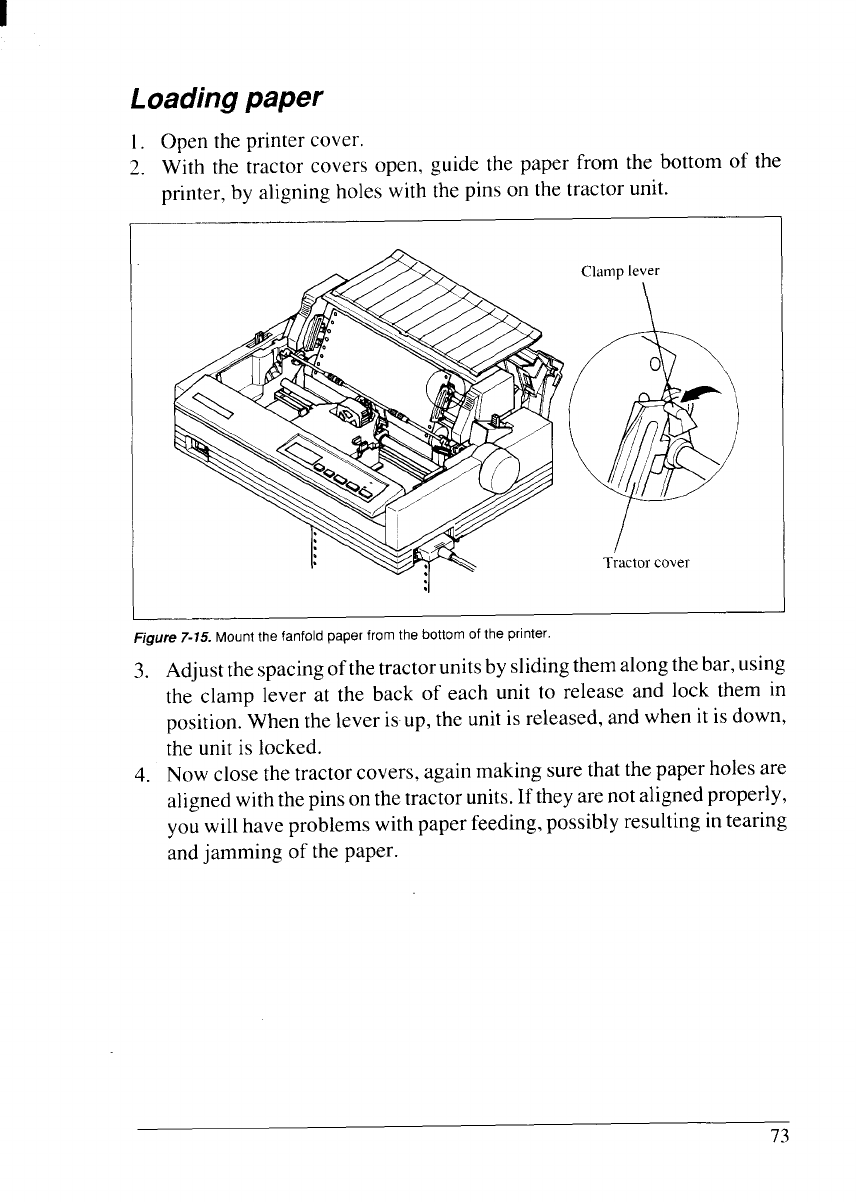

Loading paper
1. Open the printer cover.
2. With the tractor covers open, guide the paper from the bottom of the
printer, by a~igningholes with the pins on the tractor unit.
Clamp lever
/
Tractor covel
:1
Figure 7-15.Mount the fanfold paper from the bottom of the printer.
3.
4.
Adjust the spacing ofthetractor unitsby slidingthem along the bar, using
the clanm lever at the back of each unit to release and lock them in
,
position. When the lever is up, the unit is released, and when it is down,
the unit is locked.
Now close the tractor covers, again making sure that the paper holes are
aligned with the pins on thetractor units.If theyare notaligned properly,
you will have problems with paper feeding, possibly resulting in tearing
and jamming of the paper.
