Basic Measurements
1760 Series Component Waveform/Vector Monitor User Manual
4-4
ular standard used. On-screen arrows point to the graticule
scale (left side or right side) that is calibrated for the present
operating mode, as defined in Table 4--1.

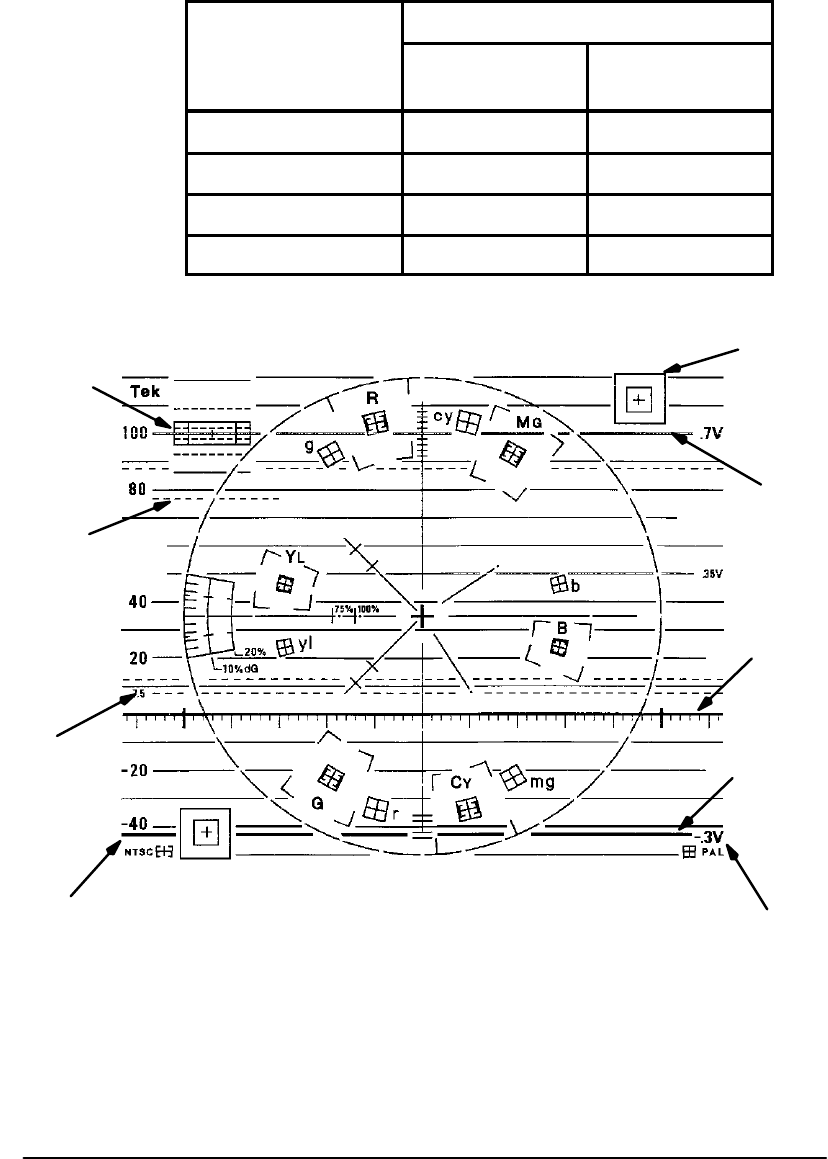

Ta b l e 4 --- 1 . Dual-Standard Graticule Scales
APPLICABLE GRATICULE SCALE
COMPONENT
FORMAT
525/60
STANDARD
625/50
STANDARD
GBR Left Right
SMPTE Right Right
BETA Left Right
MII Right Right
KFactor
Setup
Audio
100% White
Level
Baseline
Sync Tip
75% White
Level
IRE Scale
Volt Scale
Figure 4-3. Dual Standard waveform/vector graticule.
