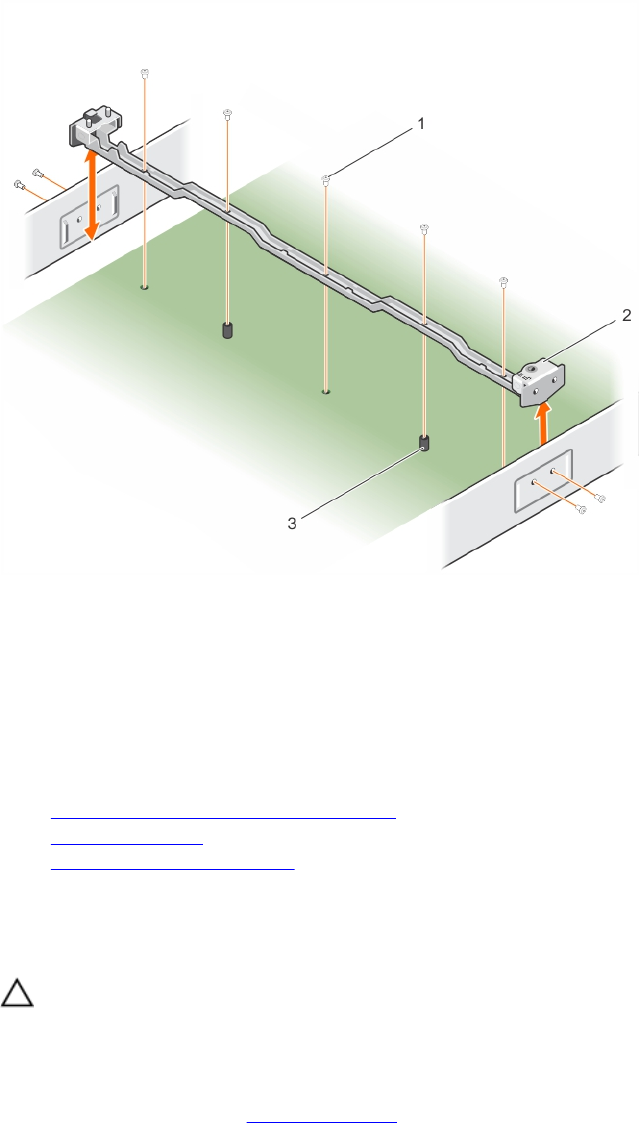

Figure 8. Removing and installing a cooling shroud retention bar
1. screw (9) 2. cooling shroud retention bar
3. standoff (2)
Next steps
1. Install the cooling shroud retention bar.
Related Links
Installing the cooling shroud retention bar
Removing the sled
Removing the cooling shroud
Installing the cooling shroud retention bar
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions.
2. Keep the #1 and #2 Phillips screwdrivers ready.
3. Remove the cooling shroud retention bar.
44
