Replace Ink Filters 5-19
Replace Ink Filters The control panel displays a Warning message on the control
panel when 20 liters of ink has passed through the filters.
Replace all five the filters as a set. Failure to replace the filters
when recommended will eventually cause the filters to clog and
prevent ink from reaching the printheads.
Have a paper towel ready to catch the small amount of ink or
cleaning solvent that will spill out of some of the tubes and the
filter itself as you disconnect them. The reservoir shelf is
designed to catch these spills for easier cleanup. You may also
want to wear protective gloves during this procedure.
1. Disconnect the tube from the ink box.
2. Remove the ink box from the shelf.
3. Use a Phillips screwdriver to loosen the filter clamp.
See Fig. 5-11 for location.
4. Unscrew the hose connectors from filter.
See Fig. 5-11 for location.
5. Remove the old filter.
6. Install the new filter into the filter clamp.

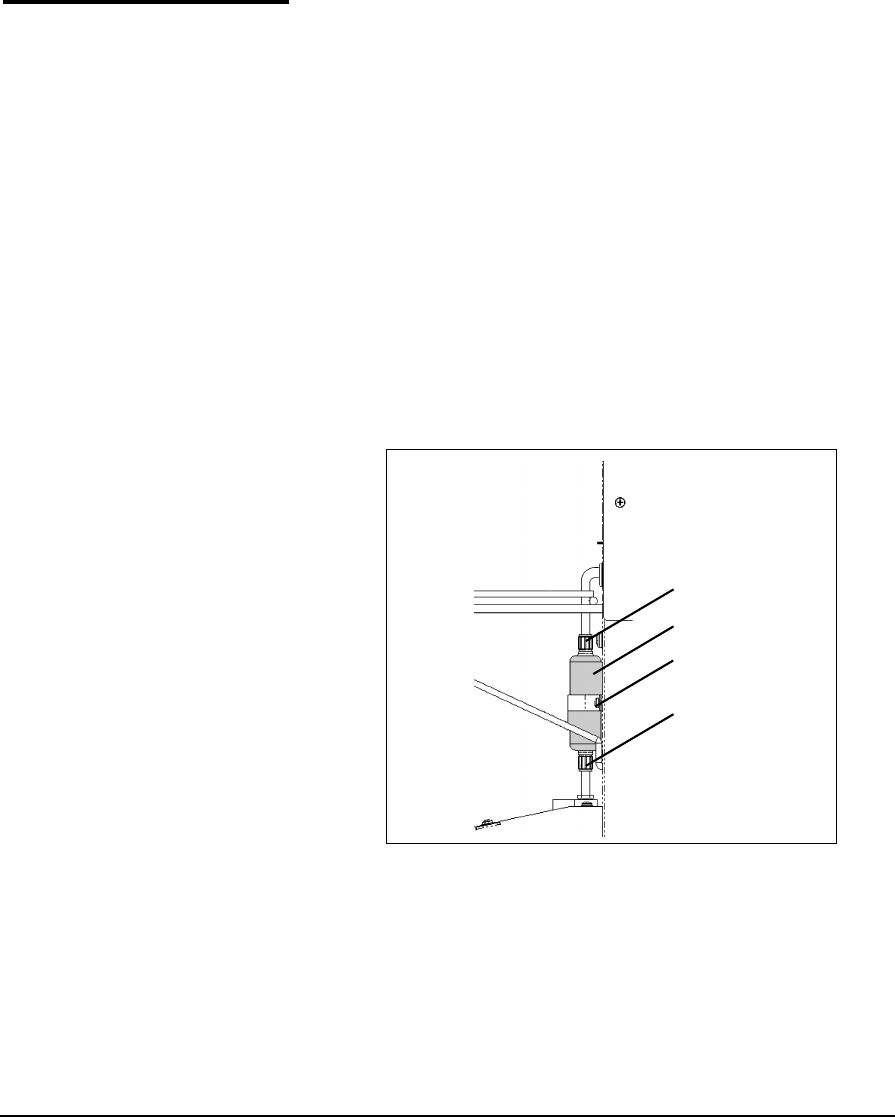

Fig. 5-11. Filter connections
Connector
Connector
Filter
Clamp
