Chapter 6. Terminal Menu and System Control
61200266L1-1 ATLAS 810
PLUS
User Manual 6-21
»» View Selftest Log
Read security: 5
Displays time-stamped log of the tests conducted and the Pass/Fail results.
Self-tests verify data integrity and processor control to each port. Each port
is looped back and a data pattern is sent and tested.
The result of the self-test on each installed port is listed with Pass/Fail re-
sults. A typical test log is shown in Figure 6-5 on page 6-21. The log includes
the following additional fields.:
The tests associated with the system controller include the following:

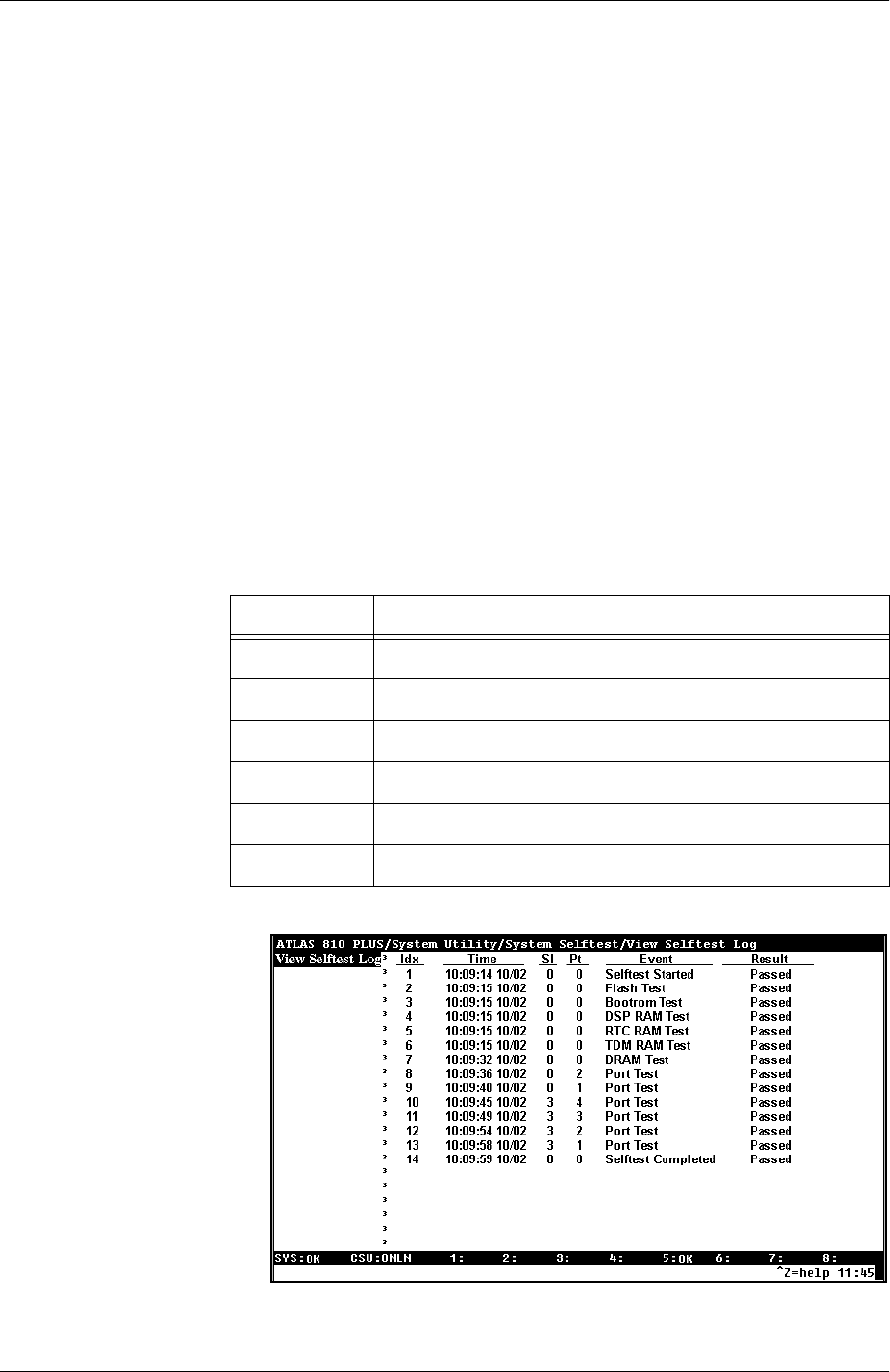

Figure 6-5. View Self-test Log
Idx
Index number of the log.
Time
Time and date of the log entry.
Sl
ATLAS slot number.
Pt
ATLAS port number.
Event
Event description.
Result
Shows Pass/Fail results.
This event... Logs this result...
Flash Flash memory checksum verified.
BootRom Boot ROM checksum verified.
DSP RAM Memory associated with the DTMF DSP.
RTC RAM Memory associated with the real time clock.
TDM RAM Memory associated with mapping TDM bandwidth.
DRAM Dynamic RAM used for program execution.
