56 | Handling Paper and Other Media
Removing Paper from the Spindle
If you need to remove the paper roll from the spindle, follow these
steps:
1. Open the roll paper cover.
2. If the paper is loaded for printing, push the paper lever back to
the released position, then roll up the paper before removing it.
3. Remove the roll paper and spindle from the printer.

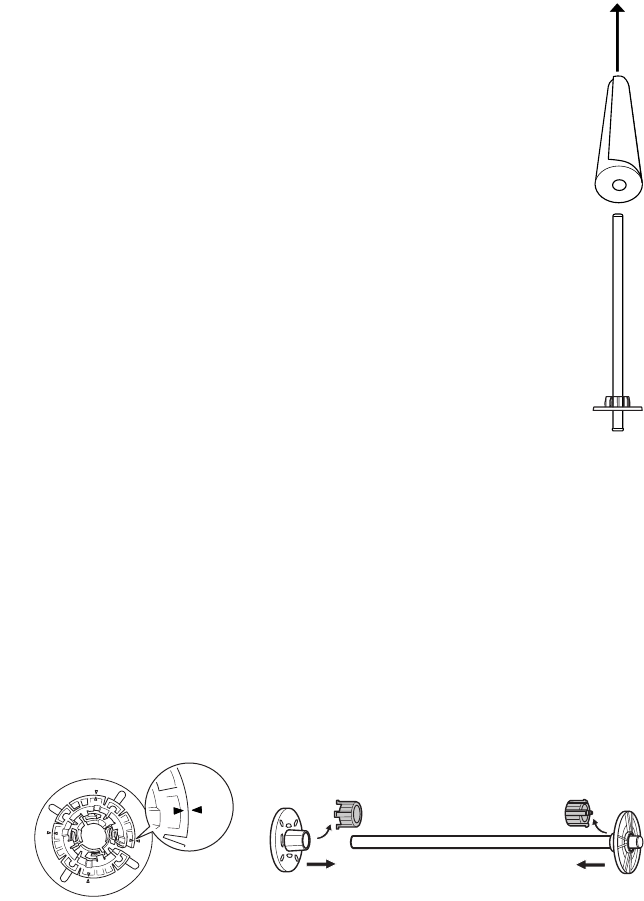

4. Set the spindle upright, with the gray end on the floor and the
black end at the top.
5. Slide the black paper stop off the top of the spindle.
6. Remove the roll paper from the spindle.
Switching Between 2-Inch and 3-Inch Roll Paper
You can convert the spindle to accept roll paper with either a 2-inch or
3-inch core by using the spindle adapters. Follow these steps to attach the
adapters for using 3-inch roll paper:
1. Remove the black paper stop from the end of the spindle.
2. Align the arrow marks as shown below and press one of the adapters
onto the gray paper stop until it locks in place. Press the other adapter
onto the black paper stop.
Note: Roll paper with a
2-inch core may cause
paper jams on this printer
due to severe paper curl.
If you notice frequent
paper jams when using
2-inch core media, switch
to media with a 3-inch
core.
