Psion Teklogix 9160 G2 Wireless Gateway User Manual

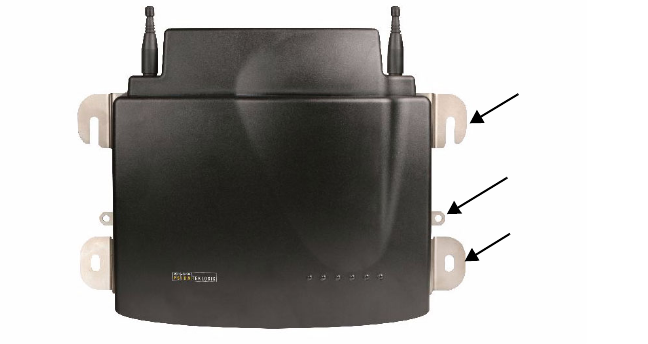

Figure 2.1 9160 G2 Installation Position
2.1.2 Maintenance
The 9160 G2 has no internal option switches and does not require physical access;
all configuration settings are done remotely (see “Navigating To Basic Settings” on
page 47). Environmental and radio communication considerations do still apply.
2.1.3 Radios
802.11g radio without integrated antenna (standard).
802.11a/g radio without integrated antenna (optional second radio).
RA1001A - Narrow Band (NB) Radio.
2.1.4 Power And Antenna Cables
2.1.4.1 Power
To prevent accidental disconnection and stress on the 9160 G2, antenna and power
cables should be secured within 30 cm of the unit. Secure the cables with ties to
the cable tie mounts on the 9160 G2 (see Figure 2.1). A single phase power outlet
(range 100 to 240 VAC rated 1.0A minimum) should be installed within one metre
(3.1 feet) of the 9160 G2. The 9160 G2 automatically adjusts to input within that
Mounting Slot
Cable Tie Mount
Mounting Hole
