SCSI Library Rear Panel Components
SCSI Ports The four SCSI ports enable you to connect the library as a device on a SCSI
bus, and attach terminators for proper device termination.
Drive SCSI IDs The SCSI ID switches control the SCSI IDs for installed tape drives. SCSI
ID settings for uninstalled tape drives are ignored by the library.
Library SCSI ID The library SCSI ID switch sets the SCSI ID for the library itself.
Library Configuration The library configuration switch determines the operating mode
of the library. The library configuration switch default setting is 0.
Fuse Lights There are three fuse lights, one for each fuse. When you need to replace
one of the library fuses, the appropriate fuse light will light up.
Serial Port The nine-pin serial port lets you connect a serial cable for diagnostics or
manual robotics control.
Power Connector The power connector provides a port for AC power.

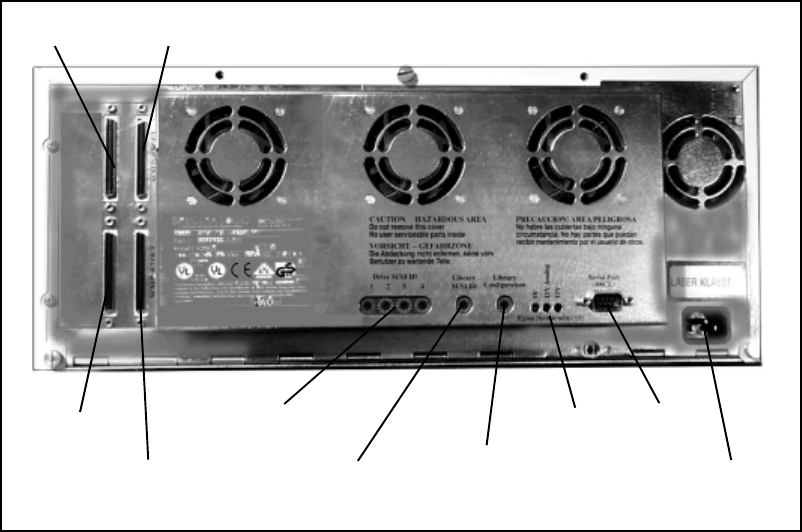

Figure 1-4 The SCSI library’s rear panel components.
SCSI Port 1 IN SCSI Port 1 OUT
SCSI Port 2 IN
SCSI Port 2 OUT
Drive SCSI IDs
Library
SCSI ID
Power
connector
Serial
port
Library
Configuration
Fuse
lights
