EMAC
control
module
Control
registers
and logic
PHY
monitoring
Peripheral
clock
MDIO
clock
generator
USERINT
MDIO
interface
polling
PHY
MDCLK
MDIO
LINKINT
Configuration bus
www.ti.com
Architecture

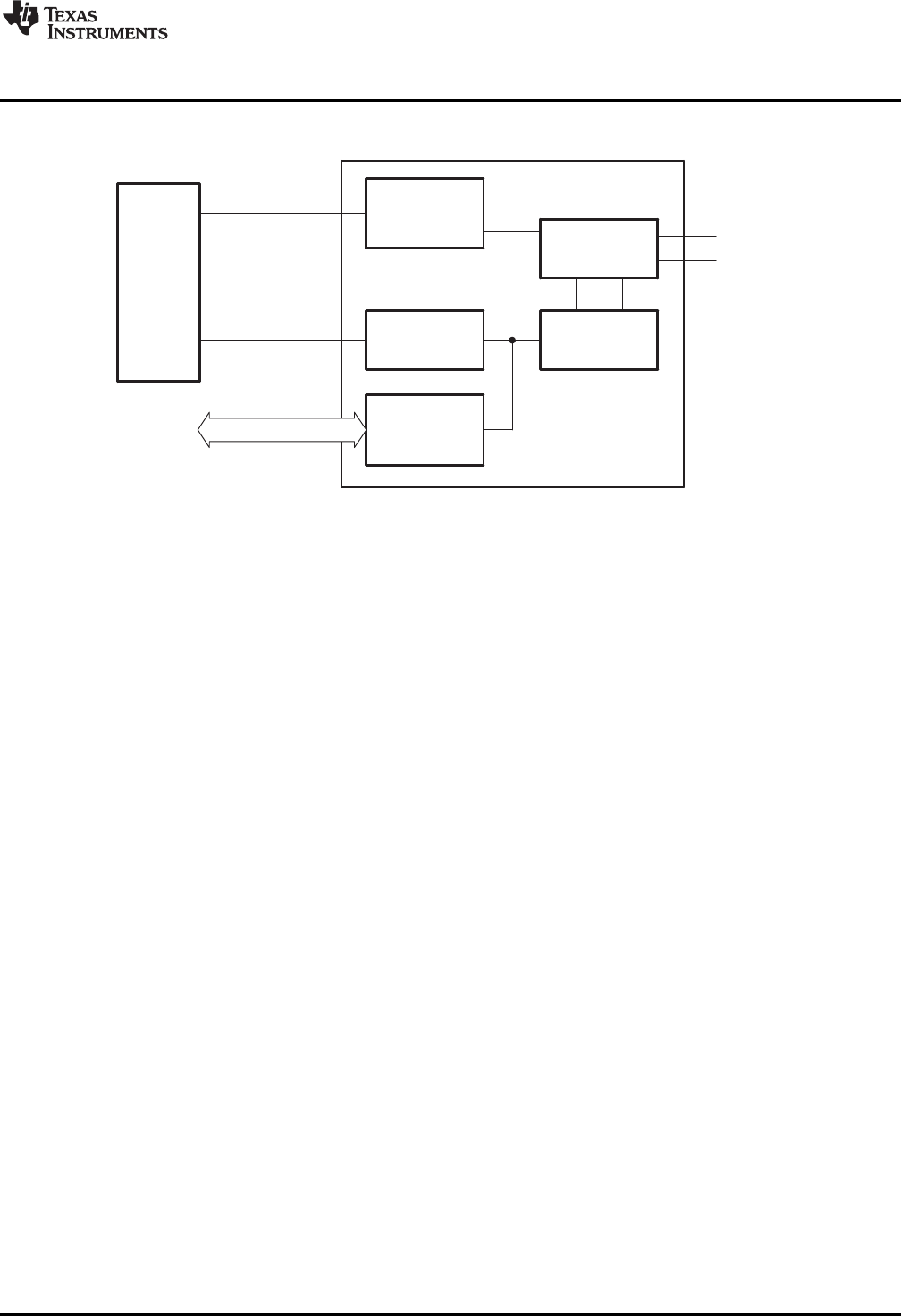

Figure 10. MDIO Module Block Diagram
2.7.1.1 MDIO Clock Generator
The MDIO clock generator controls the MDIO clock based on a divide-down of the peripheral clock in the
EMAC control module. The MDIO clock is specified to run up to 2.5 MHz, although typical operation would
be 1.0 MHz. Since the peripheral clock frequency is variable, the application software or driver controls the
divide-down amount. See your device-specific data manual for peripheral clock speeds.
2.7.1.2 Global PHY Detection and Link State Monitoring
The MDIO module continuously polls all 32 MDIO addresses in order to enumerate the PHY devices in the
system. The module tracks whether or not a PHY on a particular address has responded, and whether or
not the PHY currently has a link. Using this information allows the software application to quickly
determine which MDIO address the PHY is using.
2.7.1.3 Active PHY Monitoring
Once a PHY candidate has been selected for use, the MDIO module transparently monitors its link state
by reading the MDIO PHY link status register (LINK). Link change events are stored on the MDIO device
and can optionally interrupt the CPU. This allows the system to poll the link status of the PHY device
without continuously performing costly MDIO accesses.
2.7.1.4 PHY Register User Access
When the CPU must access MDIO for configuration and negotiation, the PHY access module performs
the actual MDIO read or write operation independent of the CPU. This allows the CPU to poll for
completion or receive an interrupt when the read or write operation has been performed. The user access
registers USERACCESSn allows the software to submit the access requests for the PHY connected to the
device.
31
SPRUFL5B–April 2011 EMAC/MDIO Module
